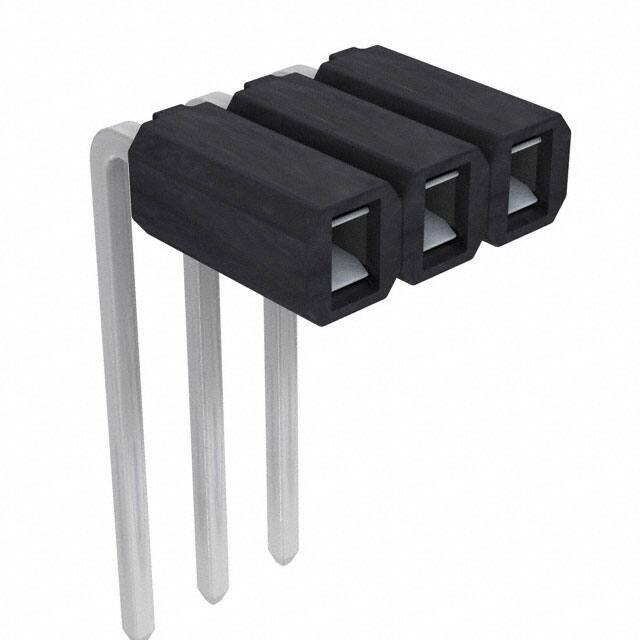

SSA-103-W-T-RA

Specifications

Ambalaj

Bulk

Body Depth

0.29 inch

Gender

Female

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

3

Filter Feature

NO

Insulation Materials

Polyethylene Terephthalate (PET), Polyester

Reliability

COMMERCIAL

Genişlik

5.46mm

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Uzunluk

7.62mm

Sıra Sayısı

1

Housing Color

Black

Option

GENERAL PURPOSE

Contact Shape

Square

Terminal

Wire Wrap

Fastening Type

Push-Pull

Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Montaj

Through Hole

Mixed Contacts

NO

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Breakaway

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Montaj Tipi

Through Hole, Right Angle

Seri

SSA

Mil Conformance

NO

Nominal Gerilim

1000V

Insulation Height

0.100 2.54mm

Insulation Resistance

5000000000Ohm

ECCN Kodu

EAR99
