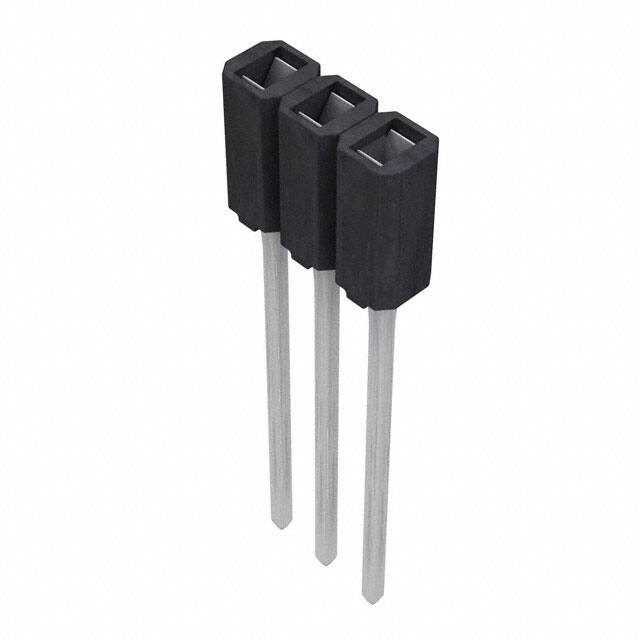

SSA-103-W-T

Specifications

Reference Standard

UL

Genişlik

2.54mm

Reliability

COMMERCIAL

Pozisyon Sayısı

3

Contact Resistance

10mOhm

Insulation Materials

Polyethylene Terephthalate (PET), Polyester

Filter Feature

NO

Gender

Female

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~105°C

Option

GENERAL PURPOSE

Housing Color

Black

Contact Shape

Square

Sıra Sayısı

1

Uzunluk

7.62mm

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Mil Conformance

NO

Seri

SSA

Montaj Tipi

Through Hole

Insulation Resistance

5000000000Ohm

Insulation Height

0.230 5.85mm

Nominal Gerilim

1000V

Kurşunsuz Kodu

yes

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Din Conformance

NO

Connector Type

Receptacle, Breakaway

Pcb Contact Pattern

RECTANGULAR

Max Voltage Rating Ac

1kV

Mixed Contacts

NO

Contact Finish Mating

Tin

Montaj

Through Hole

Style

Board to Board

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Terminal

Wire Wrap

Flammability Rating

UL94 V-0

Fastening Type

Push-Pull
