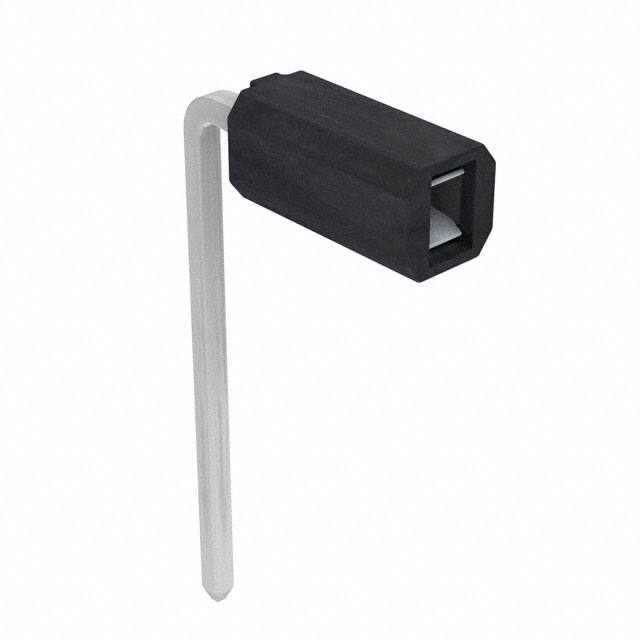

SSA-101-W-T-RA

Specifications

Contact Length Post

0.575 14.61mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Parça Durumu

Discontinued

Housing Material

Plastic

Yükseklik

2.54mm

Insertion Forcemax

2.78 N

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

Iec Conformance

NO

Yayın Yılı

2003

Pcb Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Breakaway

Din Conformance

NO

Number Of Pcb Rows

1

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Insulation Height

0.100 2.54mm

Nominal Gerilim

1000V

Insulation Resistance

5000000000Ohm

Montaj Tipi

Through Hole, Right Angle

Seri

SSA

Mil Conformance

NO

Fastening Type

Push-Pull

Flammability Rating

UL94 V-0

Terminal

Wire Wrap

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board

Montaj

Through Hole

Contact Finish Mating

Tin

Mixed Contacts

NO

Sıra Sayısı

1

Contact Shape

Square

Housing Color

Black

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No
