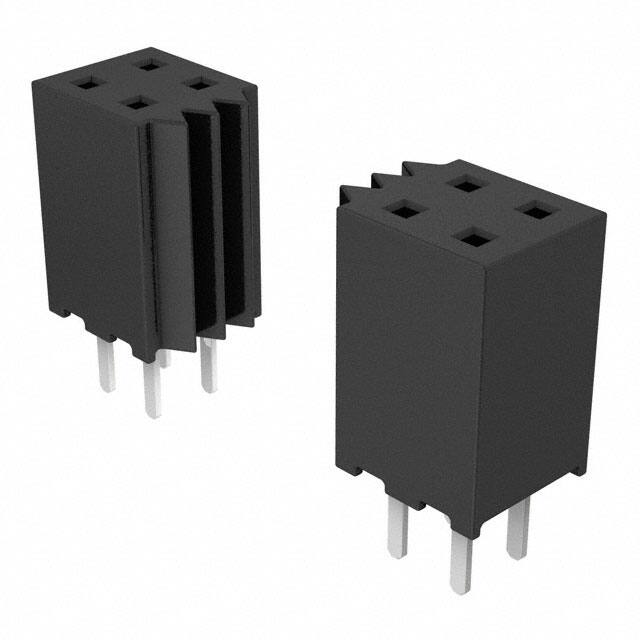

SQW-117-01-F-D

Specifications

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Yayın Yılı

2011

Iec Conformance

NO

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

3 Weeks

Depth

4mm

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Contact Length Post

0.090 2.29mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Forked

Parça Durumu

Active

Style

Board to Board or Cable

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Max Voltage Rating Ac

500V

Mixed Contacts

NO

Montaj

Through Hole

Contact Finish Mating

Gold

Orientation

Straight

Fastening Type

Push-Pull

Terminal

Solder

Contact Finish Post

Tin

Insulation Height

0.250 6.35mm

Seri

SQW

Mil Conformance

NO

Montaj Tipi

Through Hole

Din Conformance

NO

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Connector Type

Receptacle

Kurşunsuz Kodu

yes

Pitch Mating

0.079 2.00mm

Uzunluk

34.12mm

Contact Finish Thickness Mating

3.00μin 0.076μm

Material Flammability Rating

UL94 V-0
