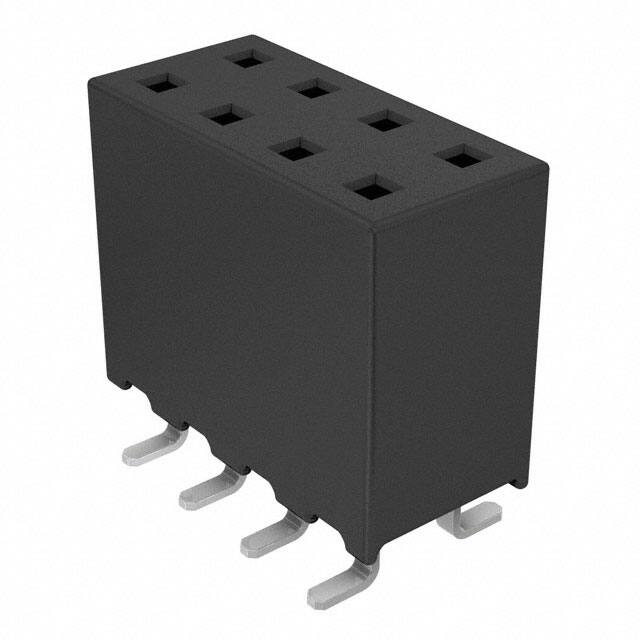

SQW-104-01-F-D-VS

Specifications

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

3 Weeks

Yayın Yılı

2013

Iec Conformance

NO

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Housing Material

Polymer

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Forked

Parça Durumu

Active

Depth

4.74mm

Terminal

Solder

Contact Finish Post

Tin

Orientation

Straight

Fastening Type

Push-Pull

Mixed Contacts

NO

Max Voltage Rating Ac

500V

Contact Finish Mating

Gold

Style

Board to Board or Cable

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Kurşunsuz Kodu

yes

Din Conformance

NO

JESD-609 Kodu

e3

Connector Type

Receptacle

Seri

SQW

Total Number Of Contacts

8

Mil Conformance

NO

Montaj Tipi

Surface Mount

Insulation Height

0.300 7.62mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

3.00μin 0.076μm

Pitch Mating

0.079 2.00mm

Uzunluk

8.12mm

Insulation Color

Black

Voltage Rated Ac

500V

Sıra Sayısı

2

Option

GENERAL PURPOSE
