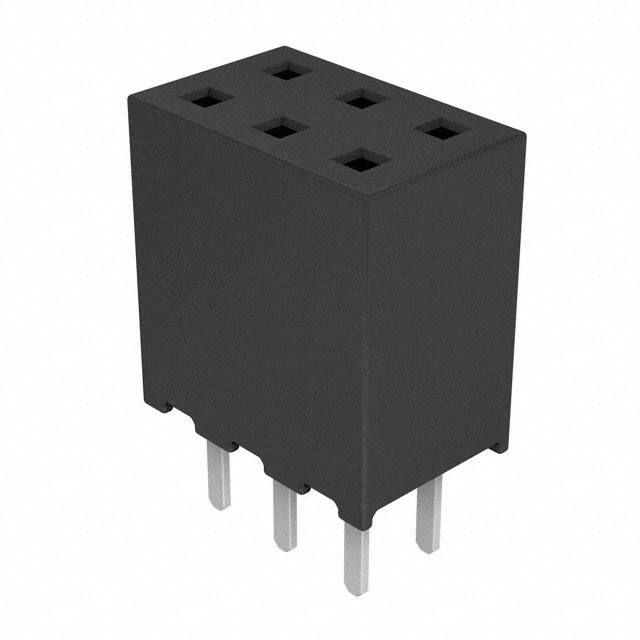

SQW-103-01-F-D

Specifications

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.090 2.29mm

Parça Durumu

Active

Depth

4mm

Fabrika Tedarik Süresi

3 Weeks

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Iec Conformance

NO

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Pcb Rows

2

Connector Type

Receptacle

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Insulation Height

0.250 6.35mm

Seri

SQW

Mil Conformance

NO

Montaj Tipi

Through Hole

Orientation

Straight

Fastening Type

Push-Pull

Terminal

Solder

Contact Finish Post

Tin

Style

Board to Board or Cable

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Max Voltage Rating Ac

500V

Contact Finish Mating

Gold

Sıra Sayısı

2

Voltage Rated Ac

500V

Contact Shape

Square

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

3.00μin 0.076μm

Material Flammability Rating

UL94 V-0

Plating Thickness

FLASH inch
