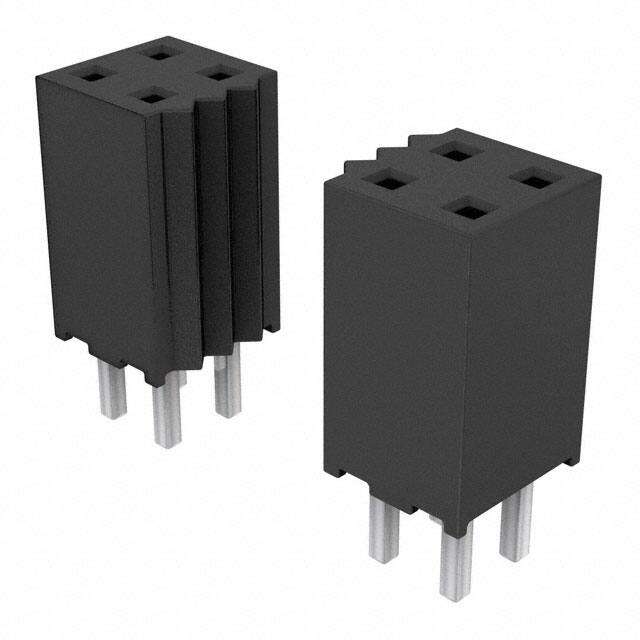

SQT-146-01-L-D

Specifications

Voltage Rated Ac

450V

Sıra Sayısı

2

Option

GENERAL PURPOSE

Housing Color

Black

Body Breadth

0.158 inch

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Plating Thickness

10μin

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

10.0μin 0.25μm

Withdrawl Forcemin

.834 N

Pitch Mating

0.079 2.00mm

Uzunluk

92.3mm

Contact Gender

FEMALE

Genişlik

4mm

Reference Standard

UL, CSA

Lead Length

2.29mm

Reliability

COMMERCIAL

Row Spacing Mating

0.079 (2.00mm)

Current Rating Amps

5.1A per Contact

Durability

100 Cycles

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

FLEXYZ, TIGER BUY CONTACT

Pozisyon Sayısı

92

Contact Resistance

10mOhm

Insulation Materials

Liquid Crystal Polymer (LCP)

Filter Feature

NO

Mating Contact Pitch

0.079 inch

Housing Material

Plastic

Parça Durumu

Active

Contact Length Post

0.090 2.29mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Forked

Yükseklik

6.35mm

Yayın Yılı

2000

Iec Conformance

NO

Kurşunsuz

Lead Free

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant
