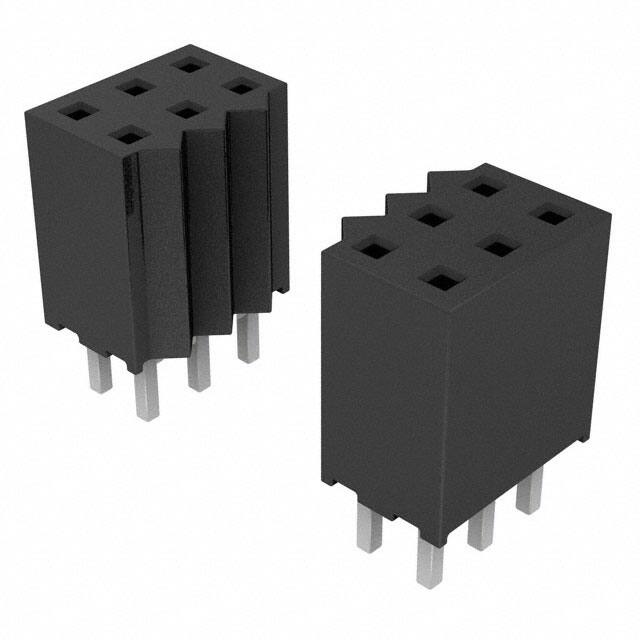

SQT-115-01-L-T

Specifications

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.090 2.29mm

Parça Durumu

Active

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Insertion Forcemax

1.112 N

Depth

6mm

Max Current Rating

5.5A

Fabrika Tedarik Süresi

3 Weeks

Iec Conformance

NO

Yayın Yılı

2015

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Kurşunsuz Kodu

yes

Connector Type

Receptacle

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Pcb Rows

3

Montaj Tipi

Through Hole

Seri

SQT

Mil Conformance

NO

Insulation Height

0.250 6.35mm

Nominal Gerilim

450VAC

Terminal

Solder

Contact Finish Post

Tin

Orientation

Straight

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Max Voltage Rating Ac

450V

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Voltage Rated Ac

450V

Sıra Sayısı

3

Terminal Adımı

2mm
