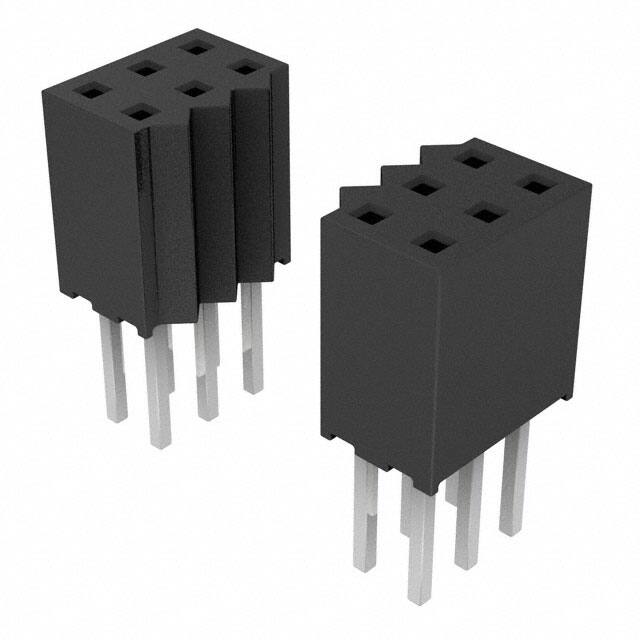

SQT-110-03-L-T

Specifications

Ambalaj

Tube

Durability

100 Cycles

Gender

Female

Additional Feature

FLEXYZ, TIGER BUY CONTACT

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

30

Filter Feature

NO

Mounting Option1

LOCKING

Contact Resistance

10mOhm

Insulation Materials

Liquid Crystal Polymer (LCP)

Reliability

COMMERCIAL

Lead Length

6.28mm

Reference Standard

UL, CSA

Row Spacing Mating

0.079 (2.00mm)

Current Rating Amps

5.1A per Contact

Plating Thickness

10μin

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Uzunluk

20.3mm

Voltage Rated Ac

450V

Sıra Sayısı

3

Terminal Adımı

2mm

Option

GENERAL PURPOSE

Contact Shape

Square

Terminal

Solder

Contact Finish Post

Tin

Orientation

Straight

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Max Voltage Rating Ac

450V

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Connector Type

Receptacle
