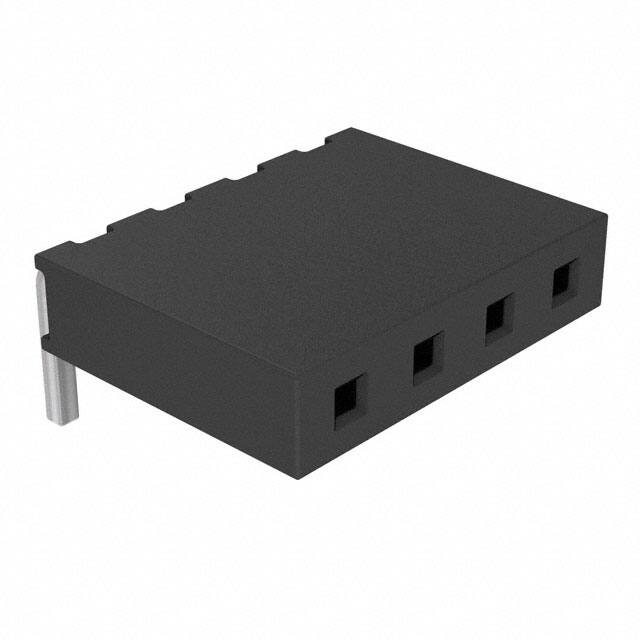

SQT-104-01-F-S-RA

Specifications

Insulation Height

0.079 2.00mm

Nominal Gerilim

450VAC

Montaj Tipi

Through Hole, Right Angle

Seri

SQT

Mil Conformance

NO

Connector Type

Receptacle

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Contact Finish Mating

Gold

Montaj

Through Hole

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Fastening Type

Push-Pull

Terminal

Solder

Contact Finish Post

Tin

Contact Length Post

0.090 2.29mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Forked

Parça Durumu

Active

Mating Contact Pitch

0.079 inch

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Iec Conformance

NO

Body Length Or Diameter

0.328 inch

Yayın Yılı

2014

Fabrika Tedarik Süresi

3 Weeks

Current Rating Amps

5.1A per Contact

Reliability

COMMERCIAL

Lead Length

2.29mm

Reference Standard

UL, CSA

Filter Feature

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

4
