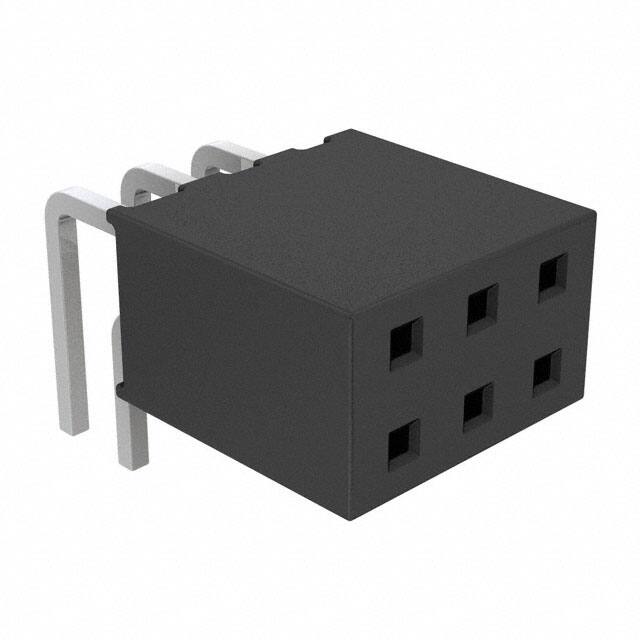

SQT-103-01-F-D-RA

Specifications

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.090 2.29mm

Parça Durumu

Active

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Depth

9.62mm

Max Current Rating

5.5A

Fabrika Tedarik Süresi

3 Weeks

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Iec Conformance

NO

Yayın Yılı

2013

Connector Type

Receptacle

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Insulation Height

0.157 4.00mm

Nominal Gerilim

450VAC

Montaj Tipi

Through Hole, Right Angle

Seri

SQT

Mil Conformance

NO

Fastening Type

Push-Pull

Orientation

Right Angle

Terminal

Solder

Contact Finish Post

Tin

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Contact Finish Mating

Gold

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Max Voltage Rating Ac

450V

Sıra Sayısı

2

Voltage Rated Ac

450V

Contact Shape

Square

Body Breadth

0.158 inch
