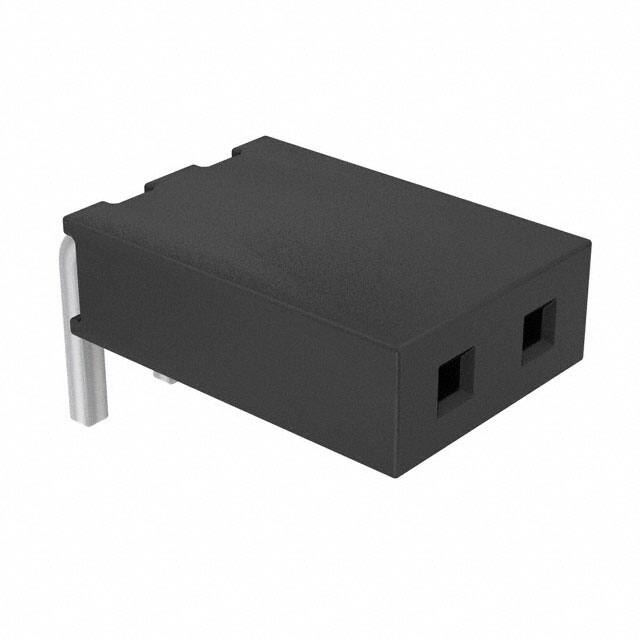

SQT-102-01-L-S-RA

Specifications

Contact Gender

FEMALE

Pitch Mating

0.079 2.00mm

Uzunluk

4.3mm

Withdrawl Forcemin

.834 N

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

Housing Color

Black

Body Breadth

0.079 inch

Option

GENERAL PURPOSE

Contact Shape

Square

Voltage Rated Ac

450V

Sıra Sayısı

1

Pozisyon Sayısı

2

Filter Feature

NO

Contact Resistance

10mOhm

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Bulk

Additional Feature

FLEXYZ, TIGER BUY CONTACT

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Current Rating Amps

5.1A per Contact

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Genişlik

6.35mm

Lead Length

2.29mm

Iec Conformance

NO

Yayın Yılı

2007

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Max Current Rating

5.5A

Depth

7.62mm

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.090 2.29mm

Parça Durumu

Active

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Montaj

Through Hole
