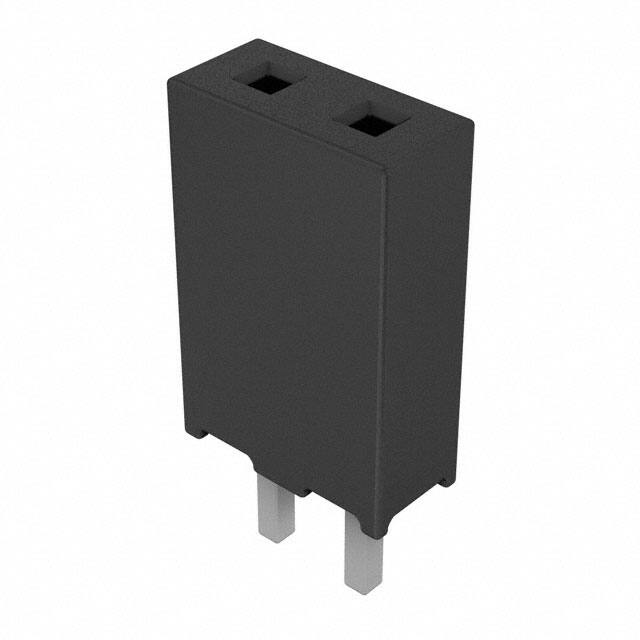

SQT-102-01-L-S

Specifications

Contact Shape

Square

Option

GENERAL PURPOSE

Housing Color

Black

Body Breadth

0.079 inch

Sıra Sayısı

1

Voltage Rated Ac

450V

Withdrawl Forcemin

.834 N

Pitch Mating

0.079 2.00mm

Uzunluk

4.3mm

Contact Gender

FEMALE

Contact Finish Thickness Mating

10.0μin 0.25μm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Current Rating Amps

5.1A per Contact

Reach Svhc

No SVHC

Reference Standard

UL, CSA

Lead Length

2.29mm

Reliability

COMMERCIAL

Filter Feature

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Resistance

10mOhm

Pozisyon Sayısı

2

Additional Feature

FLEXYZ, TIGER BUY CONTACT

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Depth

2mm

Housing Material

Polymer

Mating Contact Pitch

0.079 inch

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.090 2.29mm

Parça Durumu

Active

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Yayın Yılı

2007

Iec Conformance

NO

Max Current Rating

5.5A

Nominal Gerilim

450VAC

Insulation Height

0.250 6.35mm
