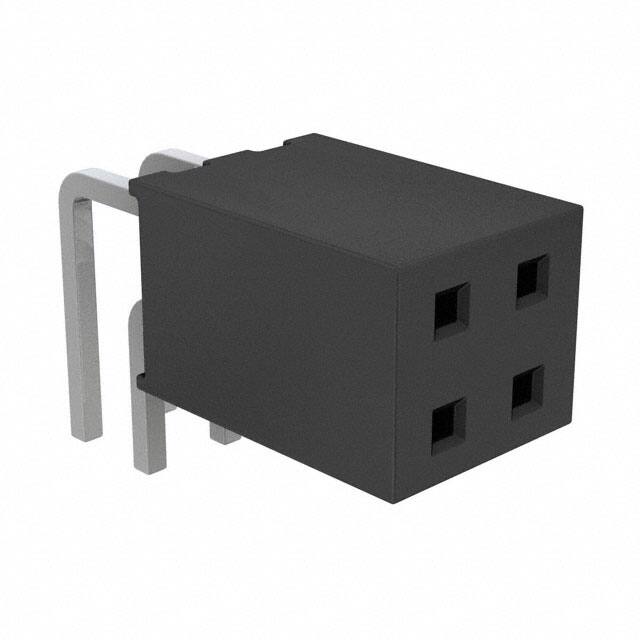

SQT-102-01-L-D-RA

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

FLEXYZ, TIGER BUY CONTACT

Ambalaj

Bulk

Durability

100 Cycles

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Resistance

10mOhm

Filter Feature

NO

Pozisyon Sayısı

4

Reliability

COMMERCIAL

Lead Length

2.29mm

Reference Standard

UL, CSA

Current Rating Amps

5.1A per Contact

Reach Svhc

No SVHC

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Thickness Mating

10.0μin 0.25μm

Radyasyon Dayanımı

No

Plating Thickness

10μin

Material Flammability Rating

UL94 V-0

Contact Gender

FEMALE

Pitch Mating

0.079 2.00mm

Uzunluk

4.3mm

Sıra Sayısı

2

Voltage Rated Ac

450V

Contact Shape

Square

Housing Color

Black

Body Breadth

0.158 inch

Option

GENERAL PURPOSE

Fastening Type

Push-Pull

Orientation

Right Angle

Lead Pitch

2mm

Contact Finish Post

Tin

Terminal

Solder

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Style

Board to Board or Cable

Montaj

Through Hole

Contact Finish Mating

Gold

Mixed Contacts

NO

Max Voltage Rating Ac

450V

Polarization Key

POLARIZED HOUSING
