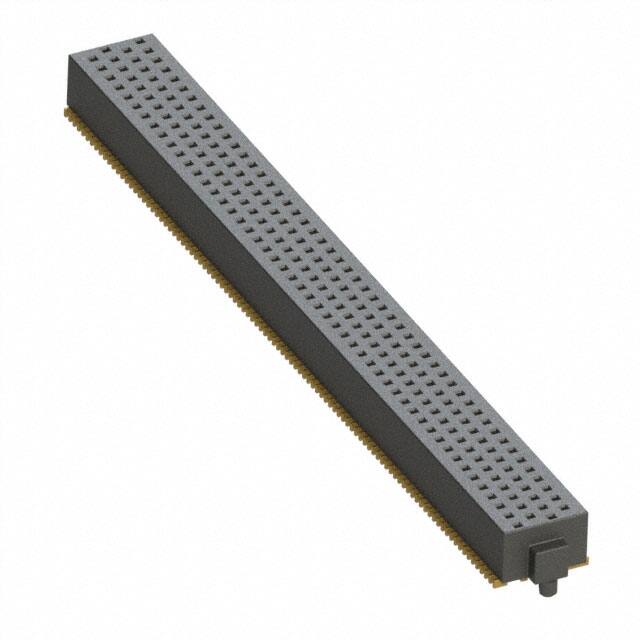

SOLC-150-02-S-Q-A

Specifications

Orientation

Straight

Fabrika Tedarik Süresi

3 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Post

3.00μin 0.076μm

JESD-609 Kodu

e4

Yayın Yılı

2014

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Reference Standard

UL, CSA

Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Mating Contact Pitch

0.05 inch

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

4

Body Breadth

0.25 inch

Number Of Pcb Rows

2

Style

Board to Board

Durability

100 Cycles

Contact Finish Mating

Gold

Pozisyon Sayısı

200

Reliability

COMMERCIAL

Housing Material

Polymer

Depth

6.35mm

Number Of Conductors

ONE

Number Of Positions Loaded

All

Mounting Option1

LOCKING

Current Rating Amps

2.4A per Contact

Contact Resistance

10mOhm

Uzunluk

66.05mm

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.160 4.06mm

Contact Shape

Square

Pitch Mating

0.050 1.27mm

Insulation Color

Black

Contact Materials

Phosphor Bronze

Plating Thickness

30μin

ECCN Kodu

EAR99
