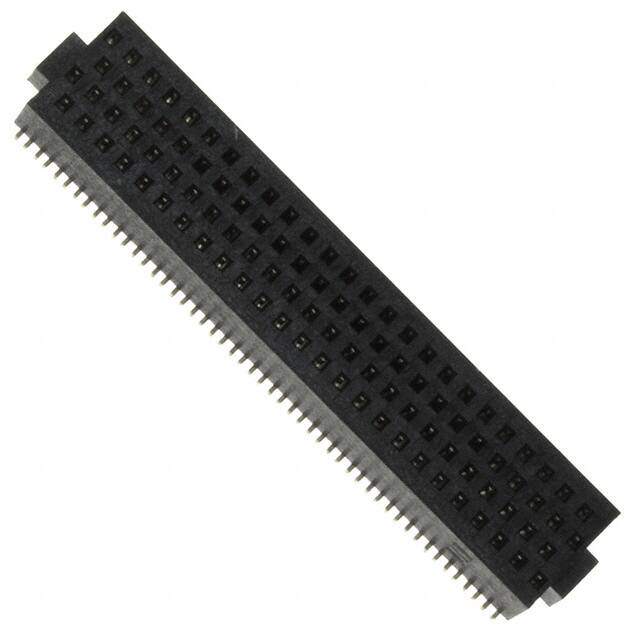

SOLC-125-02-S-Q

Specifications

Contact Type

Forked

Row Spacing Mating

0.050 (1.27mm)

Terminal

Solder

Filter Feature

NO

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Plating Thickness

30μin

Parça Durumu

Active

Option

GENERAL PURPOSE

Mixed Contacts

NO

Fastening Type

Push-Pull

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Color

Black

Seri

FOURRAY™ SOLC

Total Number Of Contacts

100

Genişlik

6.35mm

Contact Gender

FEMALE

Number Of Positions Loaded

All

Number Of Conductors

ONE

Lead Pitch

1.27mm

Contact Materials

Phosphor Bronze

Pitch Mating

0.050 1.27mm

Contact Shape

Square

Insulation Height

0.160 4.06mm

Pcb Contact Pattern

RECTANGULAR

Uzunluk

32.3mm

Contact Resistance

10mOhm

Current Rating Amps

2.4A per Contact

Yükseklik

4.06mm

Number Of Pcb Rows

2

Body Breadth

0.25 inch

Kurşunsuz

Lead Free

Sıra Sayısı

4

Reach Svhc

No SVHC

Body Depth

0.18 inch

RoHS Durumu

ROHS3 Compliant

Additional Feature

STAGGERED CONFIGURATION

Akım Değeri

2.5A

Housing Material

Plastic

Pozisyon Sayısı

100
