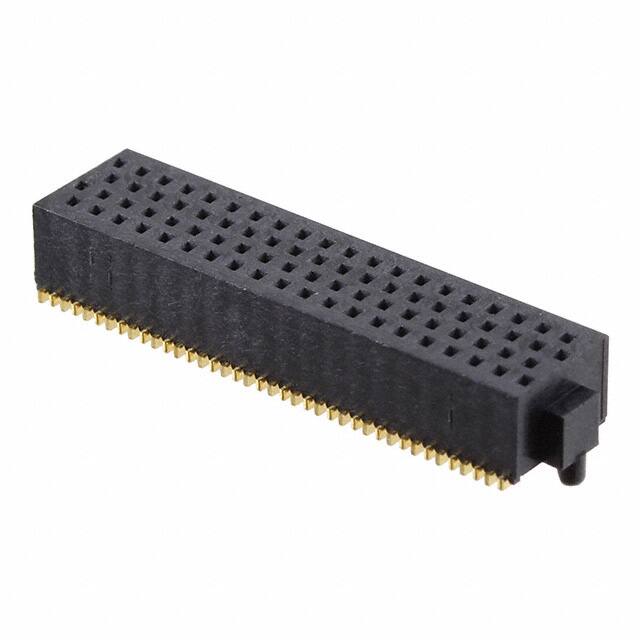

SOLC-120-02-L-Q-A

Specifications

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

10.0μin 0.25μm

Din Conformance

NO

Orientation

Straight

Insulation Materials

Liquid Crystal Polymer (LCP)

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Thickness Post

3.00μin 0.076μm

Material Flammability Rating

UL94 V-0

Yayın Yılı

2013

JESD-609 Kodu

e4

Style

Board to Board

Kurşunsuz Kodu

yes

Iec Conformance

NO

Contact Finish Mating

Gold

Pozisyon Sayısı

80

Mil Conformance

NO

Housing Material

Polymer

Additional Feature

FOURRAY, TIGER BUY CONTACT

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Sıra Sayısı

4

Contact Resistance

10mOhm

Current Rating Amps

2.4A per Contact

Uzunluk

27.95mm

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Insulation Height

0.160 4.06mm

Contact Shape

Square

Contact Materials

Phosphor Bronze

Depth

6.35mm

Contact Gender

FEMALE

Number Of Positions Loaded

All

Terminal Adımı

0.635mm

Seri

FOURRAY™ SOLC

Total Number Of Contacts

80

Mixed Contacts

NO

Option

GENERAL PURPOSE
