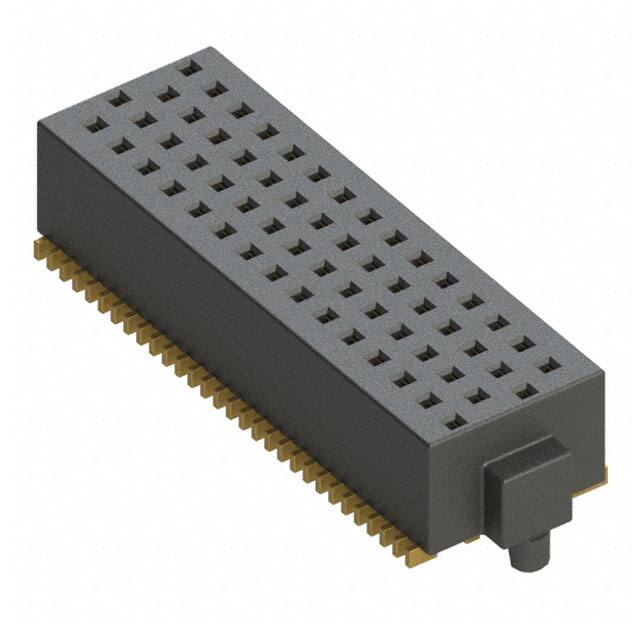

SOLC-115-02-L-Q-A

Specifications

Contact Resistance

10mOhm

Current Rating Amps

2.4A per Contact

Uzunluk

21.6mm

Insulation Height

0.160 4.06mm

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Contact Materials

Phosphor Bronze

Depth

6.35mm

Number Of Conductors

ONE

Contact Gender

FEMALE

Number Of Positions Loaded

All

Mounting Option1

GUIDE PIN

Total Number Of Contacts

60

Terminal Adımı

0.635mm

Seri

FOURRAY™ SOLC

Fastening Type

Push-Pull

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insertion Forcemax

.556 N

Option

GENERAL PURPOSE

Mixed Contacts

NO

Parça Durumu

Active

Plating Thickness

10μin

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99

Connector Type

Receptacle

Filter Feature

NO

Row Spacing Mating

0.050 (1.27mm)

Özellikler

Board Guide

Terminal

Solder

Contact Type

Forked

Reference Standard

UL, CSA

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.05 inch

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Orientation

Straight

Din Conformance

NO
