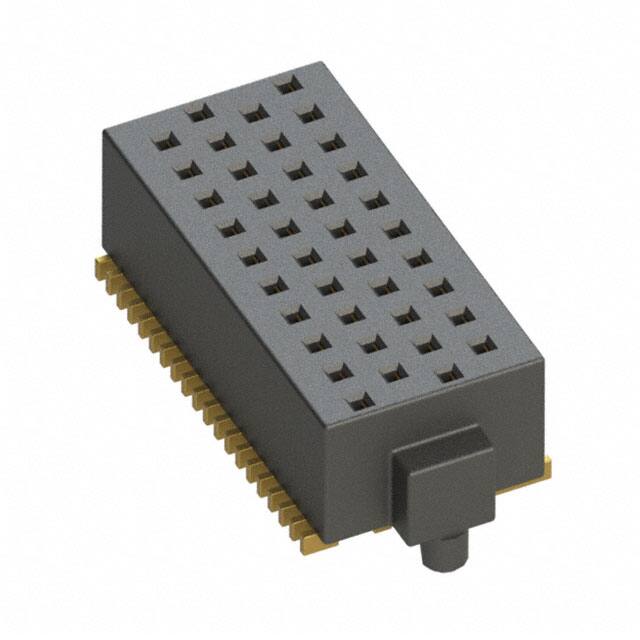

SOLC-110-02-L-Q-A

Specifications

Contact Type

Forked

Row Spacing Mating

0.050 (1.27mm)

Terminal

Solder

Özellikler

Board Guide

Filter Feature

NO

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Parça Durumu

Active

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fastening Type

Push-Pull

Mixed Contacts

NO

Option

GENERAL PURPOSE

Total Number Of Contacts

40

Seri

FOURRAY™ SOLC

Terminal Adımı

0.635mm

Contact Gender

FEMALE

Number Of Positions Loaded

All

Depth

6.35mm

Contact Materials

Phosphor Bronze

Insulation Height

0.160 4.06mm

Contact Shape

Square

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Uzunluk

15.25mm

Contact Resistance

10mOhm

Current Rating Amps

2.4A per Contact

Sıra Sayısı

4

Reach Svhc

No SVHC

RoHS Durumu

ROHS3 Compliant

Additional Feature

FOURRAY, TIGER BUY CONTACT

Housing Material

Polymer

Iec Conformance

NO

Contact Finish Mating

Gold

Pozisyon Sayısı

40

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Board

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Yayın Yılı

2013
