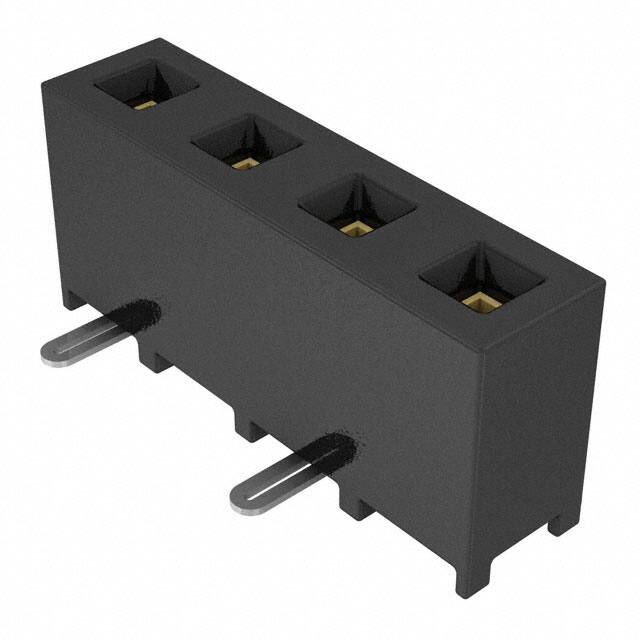

SMM-104-02-S-S

Specifications

Style

Board to Board or Cable

Akım Değeri

3.9A

Contact Materials

Beryllium Copper

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Nominal Gerilim

350VAC

Connector Type

Receptacle

JESD-609 Kodu

e3

Contact Finish Post

Tin

Housing Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Contact Shape

Square

Current Rating Amps

3.2A per Contact

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Orientation

Straight

Sıra Sayısı

1

Additional Feature

ELP, TIGER EYE

Uzunluk

8mm

Ambalaj

Bulk

Contact Type

Female Socket

Housing Material

Polymer

Depth

2mm

Lead Pitch

2mm

Kurşunsuz Kodu

yes

Pcb Contact Pattern

STAGGERED

Total Number Of Contacts

4

Insulation Height

0.140 3.56mm

Number Of Positions Loaded

All

Contact Resistance

10mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2000

Filter Feature

NO

Option

GENERAL PURPOSE

Max Current Rating

3.9A

Plating Thickness

30μin

Terminal

Solder

Din Conformance

NO

Iec Conformance

NO
