Volume pricing
- 1+ pcs$2.74
- 10+ pcs$2.58
- 100+ pcs$2.43
- 500+ pcs$2.30
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

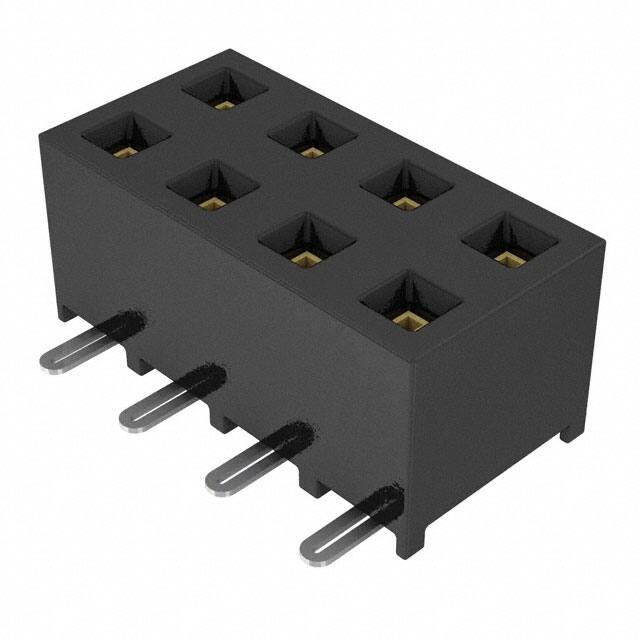

Specifications
- Contact Type
- Female Socket
- Uzunluk
- 8mm
- Ambalaj
- Tape & Reel (TR)
- Depth
- 4mm
- Housing Material
- Polymer
- Insulation Height
- 0.140 3.56mm
- Total Number Of Contacts
- 8
- Pcb Contact Pattern
- RECTANGULAR
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2000
- Pcb Contact Row Spacing
- 4.5466 mm
- Number Of Positions Loaded
- All
- Contact Resistance
- 10mOhm
- Nominal Gerilim
- 350VAC
- Connector Type
- Receptacle
- Number Of Pcb Rows
- 2
- Material Flammability Rating
- UL94 V-0
- Style
- Board to Board or Cable
- Akım Değeri
- 3A
- Contact Materials
- Beryllium Copper
- Housing Color
- Black
- Contact Finish Post
- Tin
- JESD-609 Kodu
- e3
- Row Spacing Mating
- 0.079 (2.00mm)
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Current Rating Amps
- 3.2A per Contact
- Contact Shape
- Square
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Parça Durumu
- Active
- Additional Feature
- E.L.P, TIGER EYE CONTACT
- Orientation
- Straight
- Çalışma Sıcaklığı
- -55°C~125°C
- Sıra Sayısı
- 2
- ECCN Kodu
- EAR99
- Reliability
- COMMERCIAL
- Reference Standard
- UL
- Seri
- Tiger Eye™ SMM
- Pitch Mating
- 0.079 2.00mm
- Montaj Tipi
- Surface Mount
