Volume pricing
- 1+ pcs$3.20
- 10+ pcs$3.02
- 100+ pcs$2.85
- 500+ pcs$2.69
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

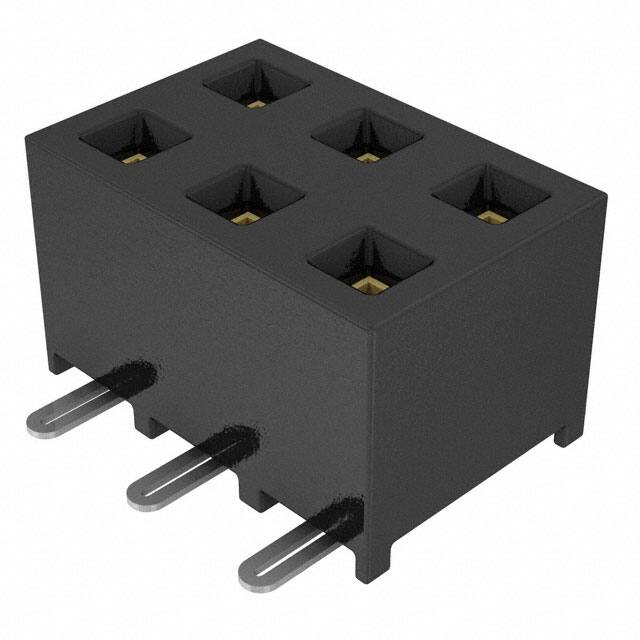

Specifications
- Number Of Positions Loaded
- All
- Contact Resistance
- 10mOhm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Yayın Yılı
- 2013
- Kurşunsuz Kodu
- yes
- Pcb Contact Pattern
- RECTANGULAR
- Total Number Of Contacts
- 6
- Insulation Height
- 0.140 3.56mm
- Housing Material
- Polymer
- Depth
- 6.3mm
- Uzunluk
- 6mm
- Ambalaj
- Tape & Reel (TR)
- Insulation Color
- Black
- Contact Type
- Female Socket
- Çalışma Sıcaklığı
- -55°C~125°C
- Orientation
- Straight
- Sıra Sayısı
- 2
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Parça Durumu
- Active
- Contact Shape
- Square
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Current Rating Amps
- 3.2A per Contact
- JESD-609 Kodu
- e3
- Row Spacing Mating
- 0.079 (2.00mm)
- Contact Finish Post
- Tin
- Mounting Option1
- LOCKING
- Style
- Board to Board or Cable
- Contact Materials
- Beryllium Copper
- Number Of Pcb Rows
- 2
- Material Flammability Rating
- UL94 V-0
- Nominal Gerilim
- 350VAC
- Connector Type
- Receptacle
- Withdrawl Forcemin
- .417 N
- Mil Conformance
- NO
- Radyasyon Dayanımı
- No
- Özellikler
- Pick and Place
- RoHS Durumu
- ROHS3 Compliant
- Number Of Conductors
- ONE
- Pozisyon Sayısı
- 6
- Montaj Tipi
- Surface Mount
