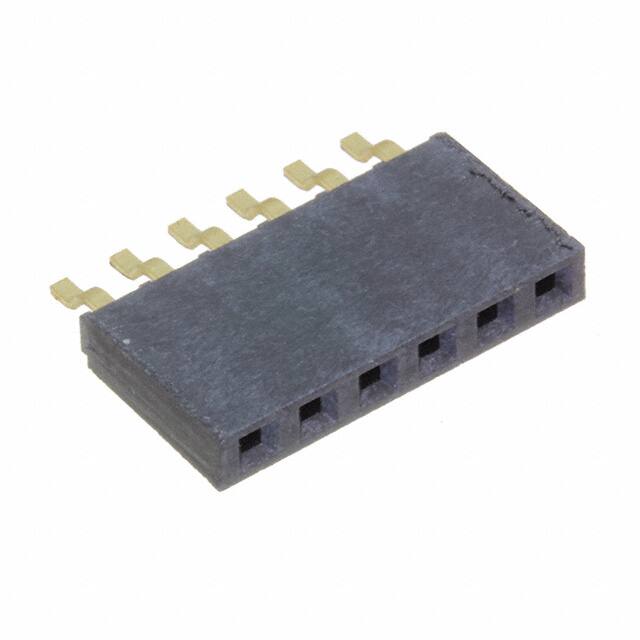

SMH-106-02-G-S

Specifications

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Style

Board to Board

Additional Feature

TIGER BUY

Total Number Of Contacts

6

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Yayın Yılı

2000

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Reliability

COMMERCIAL

Din Conformance

NO

Mil Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Body Breadth

0.095 inch

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e4

Insulation Height

0.095 2.41mm

Mixed Contacts

NO

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Reach Svhc

No SVHC

Contact Shape

Square

Number Of Conductors

ONE

Contact Type

Forked

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

6

Sıra Sayısı

1

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

1

Contact Finish Thickness Mating

20.0μin 0.51μm

Contact Gender

FEMALE

Connector Type

Receptacle

Montaj

Surface Mount
