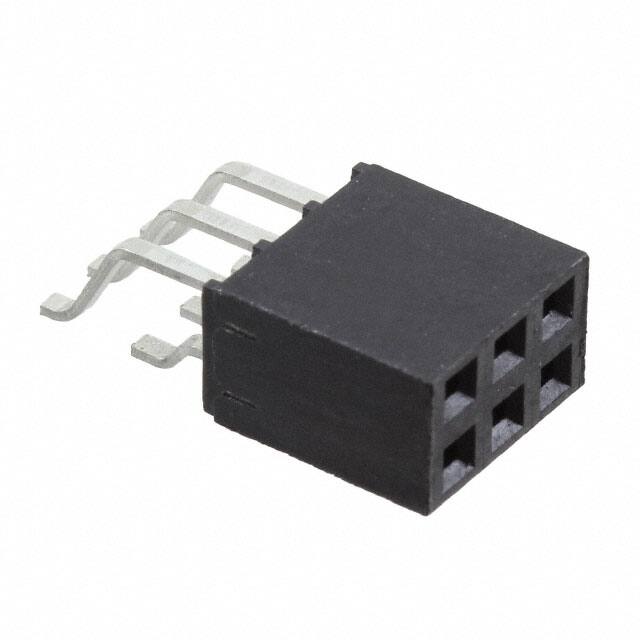

SMH-103-02-T-D

Specifications

Mixed Contacts

NO

Insulation Height

0.195 4.95mm

Reference Standard

UL

Uzunluk

8.13mm

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.195 inch

Fabrika Tedarik Süresi

3 Weeks

Mil Conformance

NO

Depth

15.75mm

Number Of Positions Loaded

All

Polarization Key

POLARIZED HOUSING

Çalışma Sıcaklığı

-55°C~105°C

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Housing Material

Polymer

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Yayın Yılı

2013

Row Spacing Mating

0.100 (2.54mm)

Kurşunsuz Kodu

yes

Iec Conformance

NO

Contact Resistance

10mOhm

Din Conformance

NO

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Additional Feature

TIGER BUY

Total Number Of Contacts

6

Style

Board to Board

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Finish Mating

Tin

Mounting Option1

LOCKING

Mating Contact Pitch

0.1 inch

Number Of Pcb Rows

2

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Receptacle
