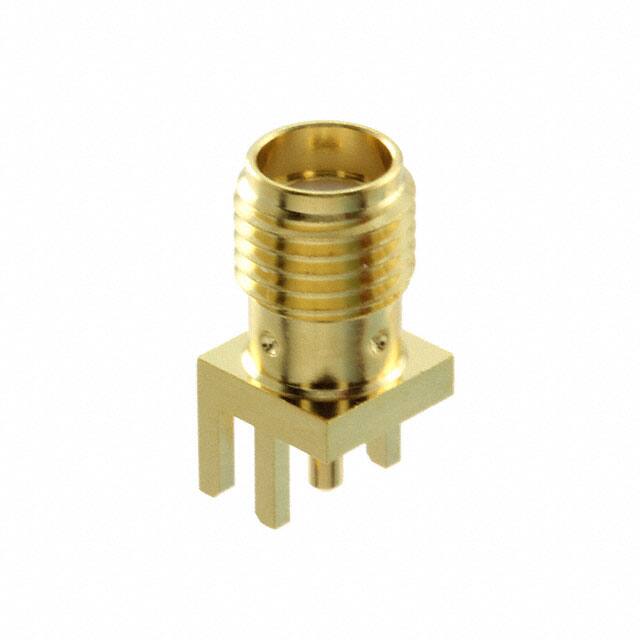

SMA-J-P-H-ST-EM1

Specifications

Connector Style

SMA

JESD-609 Kodu

e4

Connector Type

Jack, Female Socket

Dielectric Material

Polytetrafluoroethylene (PTFE)

Number Of Ports

1

Parça Durumu

Active

Filter Feature

NO

Fastening Type

Threaded

Center Contact Plating

Gold

Çalışma Sıcaklığı

-65°C~125°C

Contact Materials

Copper

Uzunluk

6.35mm

Yayın Yılı

2009

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Total Number Of Contacts

1

Fabrika Tedarik Süresi

5 Weeks

Empedans

50Ohm

RoHS Durumu

ROHS3 Compliant

Center Contact Material

Beryllium Copper

Depth

13.33mm

Orientation

Straight

Termination Type

SURFACE MOUNT

Contact Termination

Solder

Option

GENERAL PURPOSE

Insulation Resistance

5000000000Ohm

Ambalaj

Tray

Nominal Gerilim

335V

Montaj

Edge

Insulation Materials

Polytetrafluoroethylene

Montaj Tipi

Board Edge, End Launch

Mil Conformance

NO

Frekans

20GHz

Contact Resistance

60mOhm

Contact Style

COAX

Iec Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Body Material

Brass

Radyasyon Dayanımı

No
