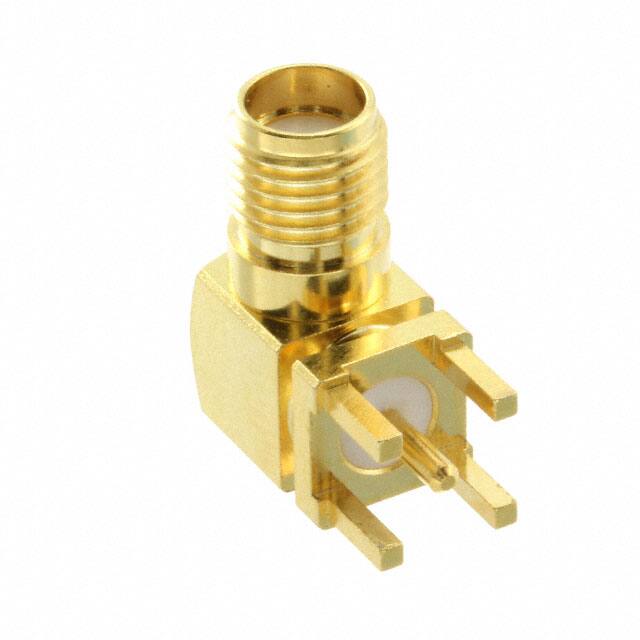

SMA-J-P-H-RA-TH1

Specifications

Frekans

20GHz

Mil Conformance

NO

Contact Style

COAX

Iec Conformance

NO

Contact Resistance

60mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Radyasyon Dayanımı

No

Body Material

Brass

Din Conformance

NO

Insulation Resistance

5000000000Ohm

Ambalaj

Tube

Montaj Tipi

Through Hole, Right Angle

Insulation Materials

Polytetrafluoroethylene

Montaj

Bulkhead, Panel, Through Hole

Nominal Gerilim

335V

Option

GENERAL PURPOSE

Insertion Loss

0.3 dB

Orientation

Right Angle

Depth

7mm

Contact Termination

Solder

Empedans

50Ohm

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

1

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Center Contact Material

Beryllium Copper

Center Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

Uzunluk

15.1mm

Çalışma Sıcaklığı

-65°C~125°C

Manufacturer Package Identifier

SMA-J-P-H-RA-TH1

Number Of Ports

1

Parça Durumu

Active

Yükseklik

10.12mm

Filter Feature

NO

Fastening Type

Threaded

Connector Style

SMA

JESD-609 Kodu

e4

Dielectric Material

Polytetrafluoroethylene (PTFE)
