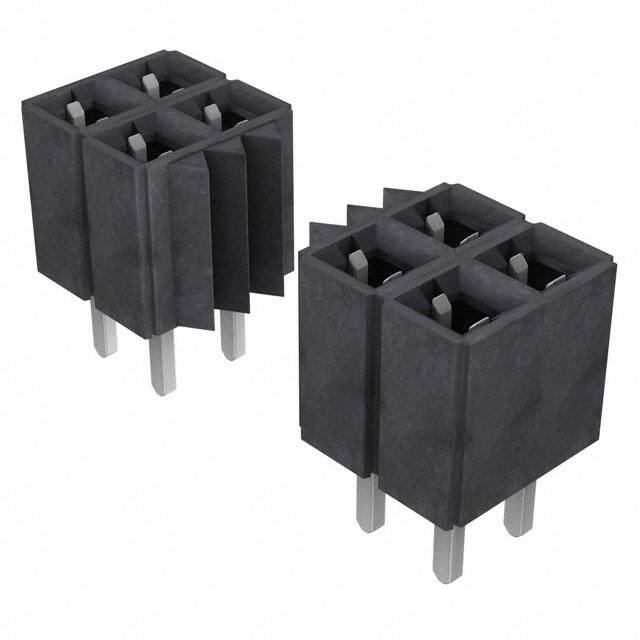

SLW-150-01-T-D

Specifications

Reach Svhc

No SVHC

Genişlik

4.95mm

Orientation

Straight

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Kurşunsuz Kodu

yes

Insulation Materials

Polyester, Glass Filled

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Additional Feature

TIGER BUY, LOW PROFILE

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole

Filter Feature

NO

Pozisyon Sayısı

100

Seri

SLW

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Housing Color

Black

Max Voltage Rating Ac

550V

Housing Material

Plastic

Max Current Rating

7.1A

Style

Board to Board

Mating Contact Pitch

0.1 inch

Sıra Sayısı

2

Insertion Forcemax

3.336 N

Connector Type

Receptacle

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-55°C~105°C

Contact Gender

FEMALE

Voltage Rated Ac

550V

Yükseklik

4.57mm

Insulation Height

0.180 4.57mm

Contact Finish Mating

Tin
