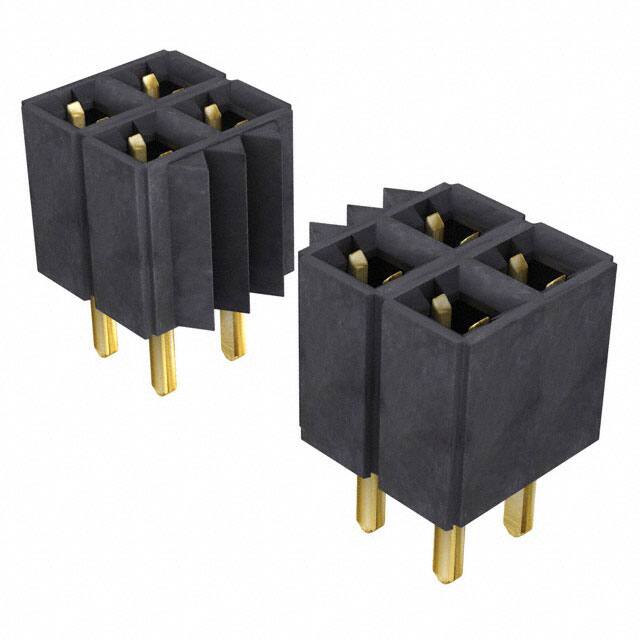

SLW-130-01-G-D

Specifications

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Filter Feature

NO

Montaj Tipi

Through Hole

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

60

Seri

SLW

Housing Material

Plastic

Housing Color

Black

Mating Contact Pitch

0.1 inch

Style

Board to Board

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

2

Length Termination

0.115 inch

Lead Pitch

2.54mm

ECCN Kodu

EAR99

Contact Materials

Phosphor Bronze

Orientation

Straight

Reach Svhc

No SVHC

HTS Kodu

8536.69.40.40

Nem Hassasiyeti (MSL)

Not Applicable

Iec Conformance

NO

Insulation Materials

Polyester, Glass Filled

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

20.0μin 0.51μm

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Body Length Or Diameter

3 inch

Additional Feature

TIGER BUY, LOW PROFILE

Akım Değeri

3A

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Stack Height Mating

6.09mm

Nominal Gerilim

550V

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Type

Forked
