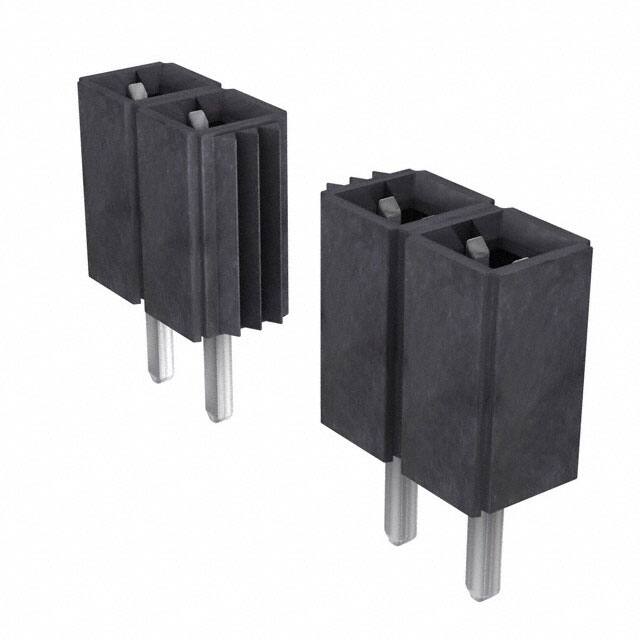

SLW-118-01-T-S

Specifications

Orientation

Straight

Contact Materials

Phosphor Bronze

Genişlik

2.54mm

Rated Current Signal

5.2A

Reach Svhc

No SVHC

Iec Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Insulation Materials

Polyester, Glass Filled

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Additional Feature

TIGER BUY, LOW PROFILE

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Montaj Tipi

Through Hole

Filter Feature

NO

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

18

Seri

SLW

Housing Material

Polyester

Max Voltage Rating Ac

550V

Housing Color

Black

Max Current Rating

7.1A

Style

Board to Board

Sıra Sayısı

1

Depth

2.54mm

Insertion Forcemax

3.336 N

Connector Type

Receptacle

Ambalaj

Bulk

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Voltage Rated Ac

550V

Çalışma Sıcaklığı

-55°C~105°C

Contact Gender

FEMALE

Insulation Height

0.180 4.57mm

Number Of Conductors

ONE
