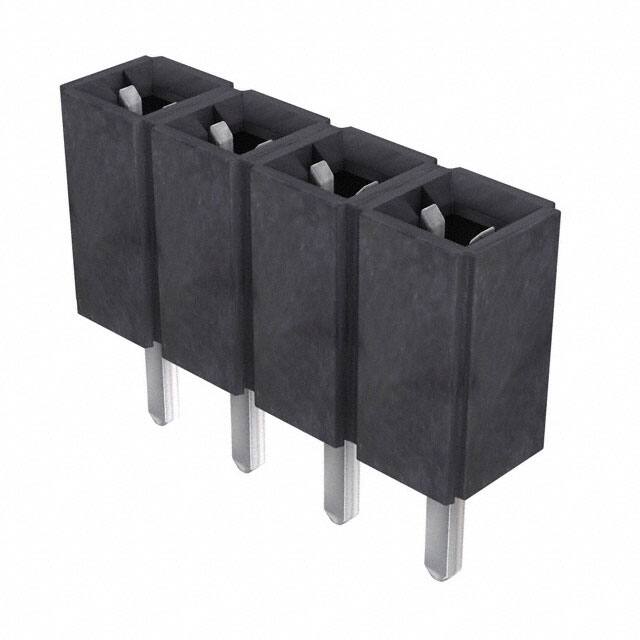

SLW-104-01-T-S

Specifications

Contact Length Post

0.115 2.92mm

RoHS Durumu

ROHS3 Compliant

Genişlik

2.54mm

Contact Shape

Square

Insertion Forcemax

3.336 N

Contact Resistance

10mOhm

Stack Height Mating

6.09mm

Pitch Mating

0.100 2.54mm

Yayın Yılı

2000

Max Voltage Rating Ac

550V

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Terminal

Solder

Contact Type

Forked

Reference Standard

UL, CSA

Contact Gender

FEMALE

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

JESD-609 Kodu

e3

Filter Feature

NO

Fastening Type

Push-Pull

Seri

SLW

Number Of Pcb Rows

1

Max Current Rating

7.1A

Additional Feature

TIGER BUY, LOW PROFILE

Sıra Sayısı

1

Number Of Positions Loaded

All

Insulation Materials

Polyester, Glass Filled

Rated Current Signal

5.2A

Style

Board to Board

Voltage Rated Ac

550V

Mil Conformance

NO

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-55°C~105°C

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

Pozisyon Sayısı

4

Ambalaj

Bulk

Mixed Contacts

NO
