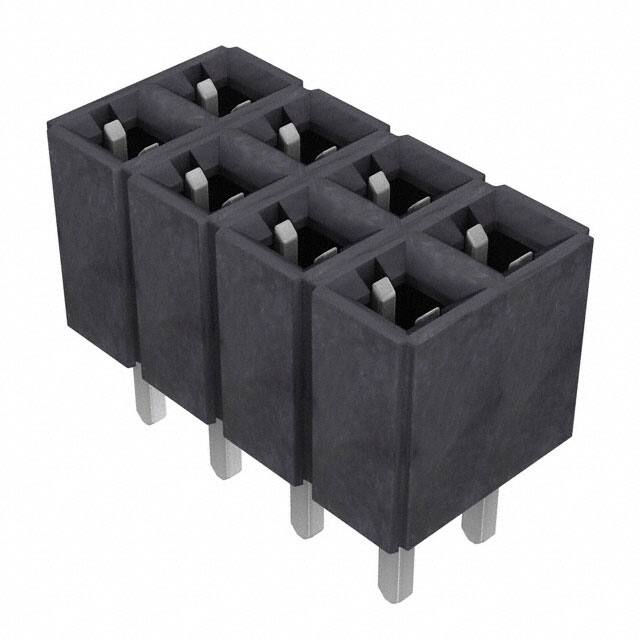

SLW-104-01-T-D

Specifications

Contact Type

Forked

Reference Standard

UL, CSA

Contact Gender

FEMALE

Pitch Mating

0.100 2.54mm

Yayın Yılı

2000

Max Voltage Rating Ac

550V

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Contact Shape

Square

Contact Resistance

10mOhm

Insertion Forcemax

3.336 N

Stack Height Mating

6.09mm

Contact Length Post

0.115 2.92mm

RoHS Durumu

ROHS3 Compliant

Genişlik

4.95mm

Sıra Sayısı

2

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Number Of Pcb Rows

2

Seri

SLW

Max Current Rating

7.1A

Additional Feature

TIGER BUY, LOW PROFILE

Filter Feature

NO

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

JESD-609 Kodu

e3

Ambalaj

Bulk

Pozisyon Sayısı

8

Mixed Contacts

NO

Montaj

Through Hole

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-55°C~105°C

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

Voltage Rated Ac

550V

Mil Conformance

NO

Insulation Materials

Polyester, Glass Filled
