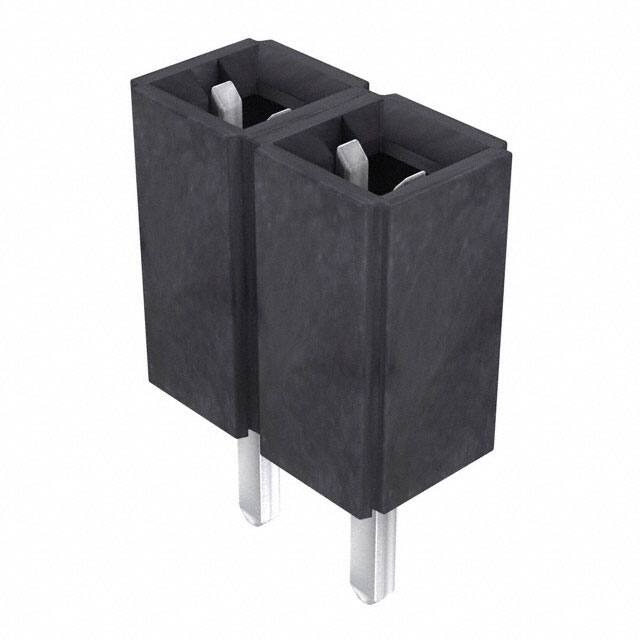

SLW-102-01-T-S

Specifications

JESD-609 Kodu

e3

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Filter Feature

NO

Additional Feature

TIGER BUY, LOW PROFILE

Max Current Rating

7.1A

Seri

SLW

Number Of Pcb Rows

1

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Sıra Sayısı

1

Genişlik

2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.115 2.92mm

Stack Height Mating

6.09mm

Contact Resistance

10mOhm

Insertion Forcemax

3.336 N

Contact Shape

Square

Terminal

Solder

Contact Materials

Phosphor Bronze

Pcb Contact Pattern

RECTANGULAR

Max Voltage Rating Ac

550V

Yayın Yılı

2000

Pitch Mating

0.100 2.54mm

Contact Gender

FEMALE

Reference Standard

UL, CSA

Contact Type

Forked

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Orientation

Vertical

Insulation Height

0.180 4.57mm

Uzunluk

5.08mm

Housing Material

Polyester

Radyasyon Dayanımı

No

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Depth

2.54mm
