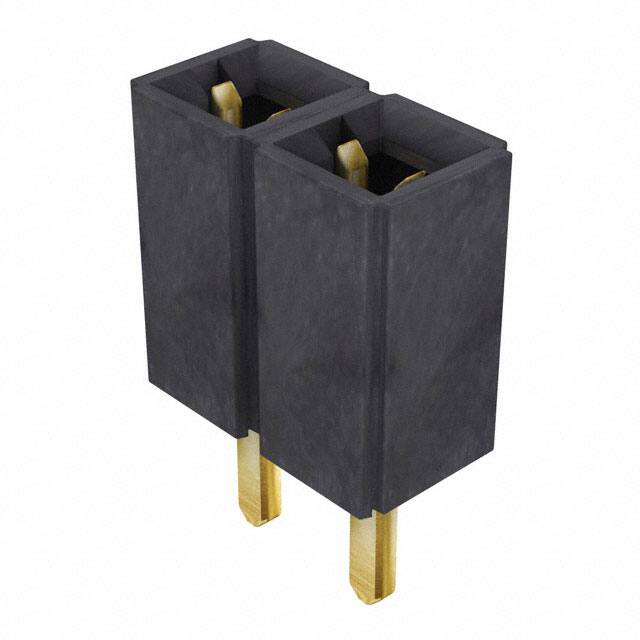

SLW-102-01-G-S

Specifications

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e4

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Nominal Gerilim

550V

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Finish Thickness Mating

20.0μin 0.51μm

Number Of Positions Loaded

All

Sıra Sayısı

1

Max Current Rating

7.1A

Seri

SLW

Number Of Pcb Rows

1

Additional Feature

TIGER BUY, LOW PROFILE

Akım Değeri

3A

Fastening Type

Push-Pull

Stack Height Mating

6.09mm

Contact Resistance

10mOhm

Insertion Forcemax

3.336 N

Contact Shape

Square

Genişlik

2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.115 2.92mm

Reference Standard

UL, CSA

Contact Type

Forked

Contact Gender

FEMALE

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Contact Materials

Phosphor Bronze

Pitch Mating

0.100 2.54mm

Max Voltage Rating Ac

550V

Yayın Yılı

2000

Insulation Height

0.180 4.57mm

Uzunluk

5.08mm

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Orientation

Vertical

Reliability

COMMERCIAL

Housing Color

Black
