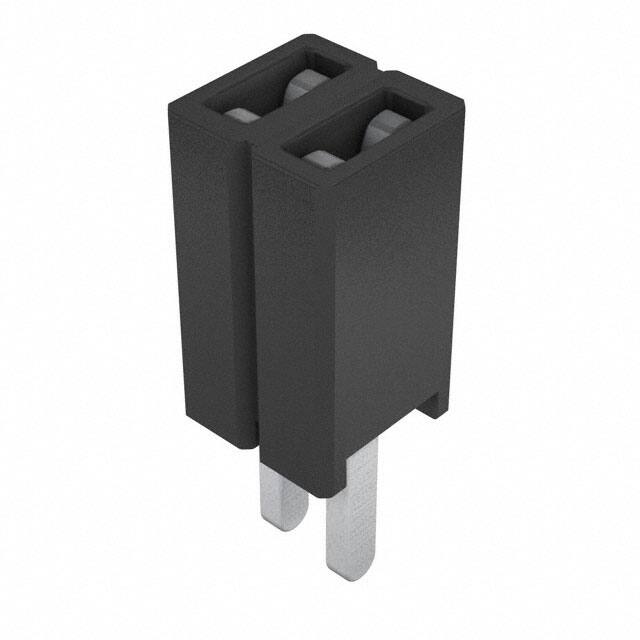

SLM-102-01-S-S

Specifications

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Resistance

10mOhm

JESD-609 Kodu

e3

Pitch Mating

0.050 1.27mm

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~125°C

Din Conformance

NO

Ambalaj

Tube

Mating Contact Pitch

0.05 inch

Style

Board to Board

Insulation Height

0.180 4.57mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Additional Feature

TIGER BUY CONTACT

Number Of Positions Loaded

All

Yayın Yılı

2014

Contact Finish Post

Tin

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Filter Feature

NO

Reference Standard

UL

Connector Type

Receptacle

Option

GENERAL PURPOSE

Contact Gender

FEMALE

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

1

Depth

2.54mm

Pozisyon Sayısı

2

Sıra Sayısı

1

Mil Conformance

NO

Contact Length Post

0.115 2.92mm

Plating Thickness

30μin

Kurşunsuz Kodu

yes

Uzunluk

2.54mm

Housing Material

Polyester

Orientation

Straight

Reliability

COMMERCIAL
