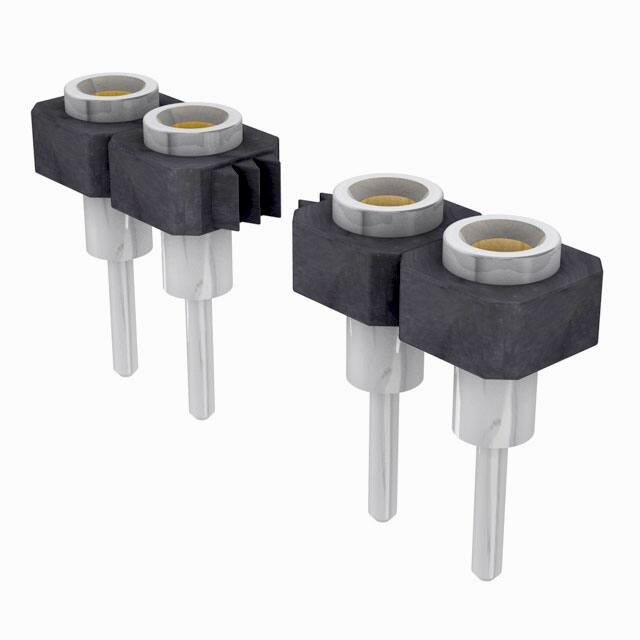

SL-129-T-11

Specifications

Uzunluk

73.7mm

Terminal

Solder

Filter Feature

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Mixed Contacts

NO

Additional Feature

LOW PROFILE

Sıra Sayısı

1

Yükseklik

1.27mm

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2008

Housing Color

Black

Parça Durumu

Discontinued

Contact Type

Female Socket

Ambalaj

Tube

Seri

SL

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

29

Gender

Female

Style

Board to Board

Din Conformance

NO

Iec Conformance

NO

Contact Length Post

0.108 2.75mm

Mil Conformance

NO

Kurşunsuz

Lead Free

Insulation Height

0.132 3.35mm

Contact Materials

Beryllium Copper

Fastening Type

Push-Pull

Option

GENERAL PURPOSE

Genişlik

2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Contact Shape

Circular

Housing Material

Plastic
