Volume pricing
- 1+ pcs$8.06
- 10+ pcs$7.60
- 100+ pcs$7.17
- 500+ pcs$6.77
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

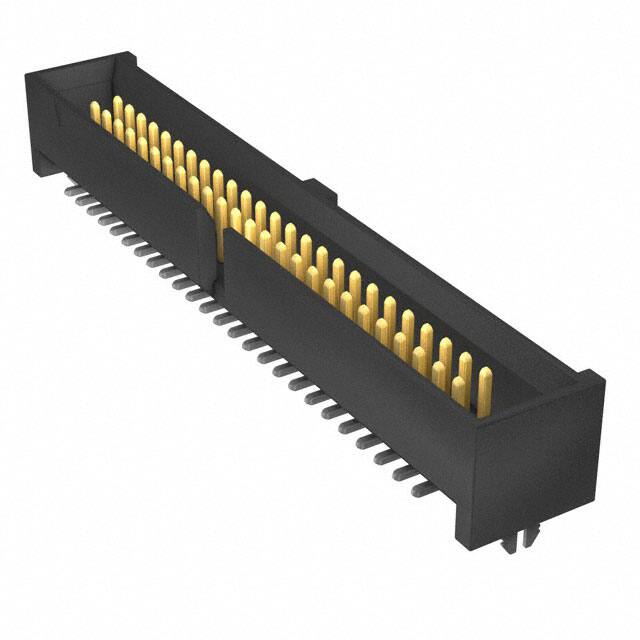

Specifications
- Montaj
- Surface Mount
- Çalışma Sıcaklığı
- -55°C~125°C
- Gender
- Male
- Uzunluk
- 38.1mm
- Pitch Mating
- 0.050 1.27mm
- Mil Conformance
- NO
- Connector Type
- Header
- Shrouding
- Shrouded - 4 Wall
- Orientation
- Straight
- Contact Finish Mating
- Gold
- Radyasyon Dayanımı
- No
- Iec Conformance
- NO
- Total Number Of Contacts
- 50
- Insulation Height
- 0.210 5.33mm
- Fabrika Tedarik Süresi
- 3 Weeks
- ECCN Kodu
- EAR99
- Pozisyon Sayısı
- 50
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Depth
- 5.59mm
- Contact Finish Post
- Tin
- JESD-609 Kodu
- e3
- Housing Color
- Black
- Material Flammability Rating
- UL94 V-0
- Max Current Rating
- 3A
- Number Of Positions Loaded
- All
- Housing Material
- Polymer
- Sıra Sayısı
- 2
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Contact Type
- Male Pin
- Özellikler
- Board Lock, Keying Slot
- Style
- Board to Cable/Wire
- Parça Durumu
- Active
- Filter Feature
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Materials
- Phosphor Bronze
- Yayın Yılı
- 2008
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Tube
- Fastening Type
- Push-Pull
- Contact Shape
- Square
