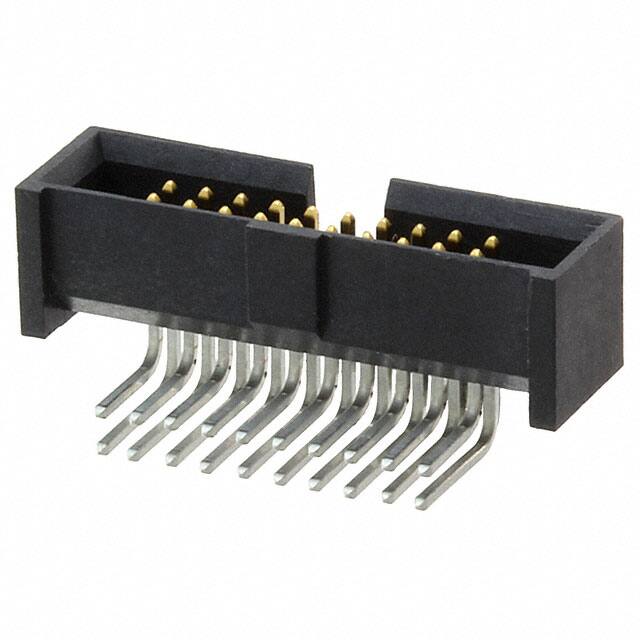

SHF-110-01-L-D-RA

Specifications

JESD-609 Kodu

e3

Insulation Color

Black

Contact Finish Post

Tin

Mating Contact Pitch

0.05 inch

Pozisyon Sayısı

20

Insulation Materials

Liquid Crystal Polymer (LCP)

Depth

7.87mm

Reach Svhc

No SVHC

Contact Length Post

0.085 2.16mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Polymer

Özellikler

Keying Slot

Contact Type

Male Pin

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Uzunluk

19.05mm

Pitch Mating

0.050 1.27mm

Plating Thickness

10μin

Number Of Pcb Rows

2

Mil Conformance

NO

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Fabrika Tedarik Süresi

3 Weeks

Kurşunsuz Kodu

yes

Insulation Height

0.220 5.60mm

Number Of Conductors

ONE

Orientation

Right Angle

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Iec Conformance

NO

Contact Finish Mating

Gold

Mixed Contacts

NO

Terminal

Solder

Contact Shape

Square

Din Conformance

NO

Row Spacing Mating

0.050 (1.27mm)

Current Rating Amps

3A

Seri

SHF
