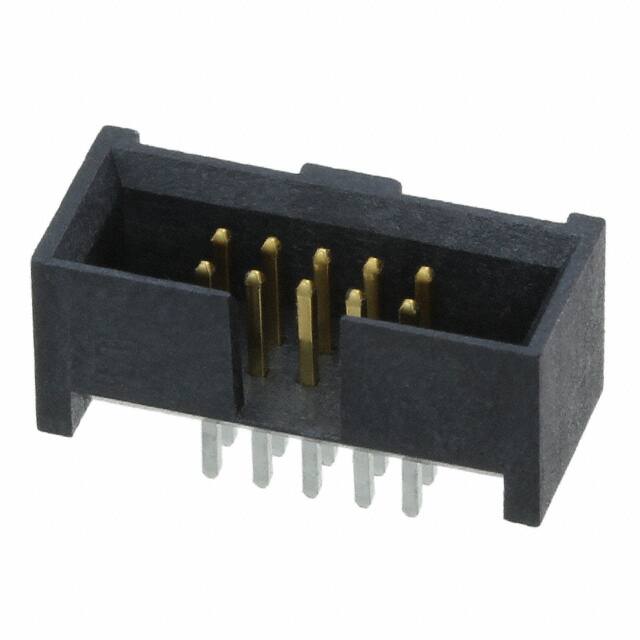

SHF-105-01-L-D-TH

Specifications

Mil Conformance

NO

Uzunluk

12.7mm

Pitch Mating

0.050 1.27mm

Number Of Pcb Rows

2

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

4 Weeks

Insulation Height

0.210 5.33mm

Iec Conformance

NO

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Shrouding

Shrouded - 4 Wall

Orientation

Straight

Connector Type

Header

Mating Contact Pitch

0.05 inch

JESD-609 Kodu

e3

Insulation Color

Black

Contact Finish Post

Tin

Depth

5.59mm

Reach Svhc

No SVHC

Contact Length Post

0.075 1.91mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pozisyon Sayısı

10

Özellikler

Keying Slot

Contact Type

Male Pin

Contact Finish Thickness Mating

10.0μin 0.25μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Housing Material

Polymer

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Style

Board to Cable/Wire

Board Mounting Option

SPLIT BOARD LOCK

Fastening Type

Push-Pull
