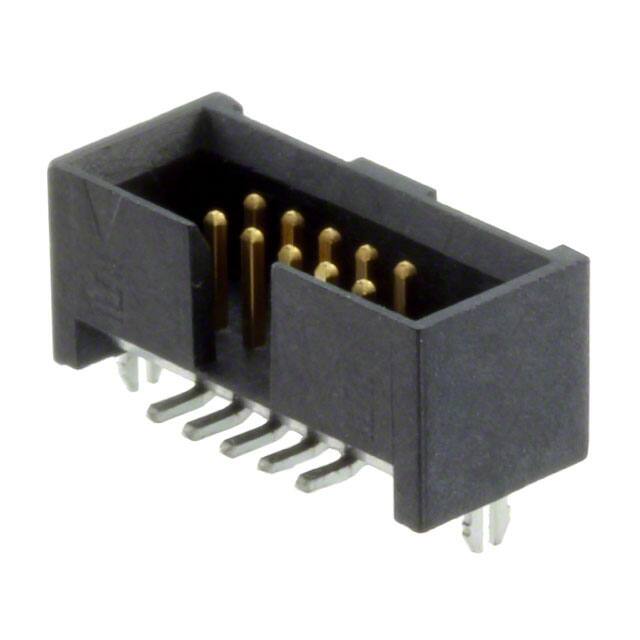

SHF-105-01-L-D-SM-LC

Specifications

Contact Materials

Phosphor Bronze

Yayın Yılı

2008

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Ambalaj

Tube

Fastening Type

Push-Pull

Style

Board to Cable/Wire

Parça Durumu

Active

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Contact Lengthmating

0.120 3.05mm

Current Rating Amps

3A

Seri

SHF

Montaj Tipi

Surface Mount

Contact Shape

Square

Terminal

Solder

HTS Kodu

8536.69.40.40

Din Conformance

NO

Row Spacing Mating

0.050 (1.27mm)

Mixed Contacts

NO

Shrouding

Shrouded - 4 Wall

Orientation

Straight

Connector Type

Header

Contact Finish Mating

Gold

Radyasyon Dayanımı

No

Iec Conformance

NO

Total Number Of Contacts

10

Insulation Height

0.210 5.33mm

Fabrika Tedarik Süresi

6 Weeks

ECCN Kodu

EAR99

Montaj

Surface Mount

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Uzunluk

12.7mm

Pitch Mating

0.050 1.27mm

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Material

Polymer

Number Of Positions Loaded

All
