Volume pricing
- 1+ pcs$6.42
- 10+ pcs$6.06
- 100+ pcs$5.71
- 500+ pcs$5.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

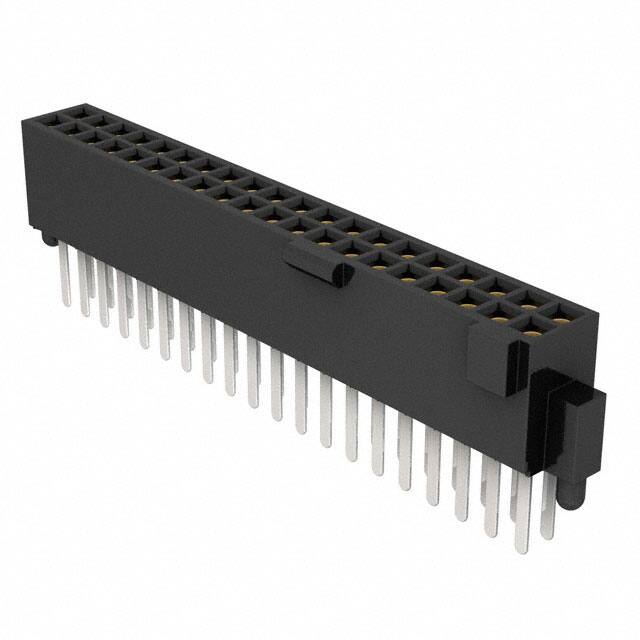

Specifications
- Çalışma Sıcaklığı
- -55°C~125°C
- Mating Contact Pitch
- 0.05 inch
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Tube
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Polarization Key
- POLARIZED HOUSING
- Radyasyon Dayanımı
- No
- Gender
- Female
- Reference Standard
- UL, CSA
- Material Flammability Rating
- UL94 V-0
- JESD-609 Kodu
- e3
- Din Conformance
- NO
- Orientation
- Straight
- Contact Finish Post
- Tin
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Fabrika Tedarik Süresi
- 3 Weeks
- Housing Material
- Polymer
- Style
- Board to Board or Cable
- Durability
- 10000 Cycles
- Kurşunsuz Kodu
- yes
- Nominal Gerilim
- 250VAC
- Reliability
- COMMERCIAL
- Mil Conformance
- NO
- Pozisyon Sayısı
- 40
- Contact Finish Mating
- Gold
- Iec Conformance
- NO
- Sıra Sayısı
- 2
- Body Breadth
- 0.145 inch
- Number Of Pcb Rows
- 2
- RoHS Durumu
- ROHS3 Compliant
- Pitch Mating
- 0.050 1.27mm
- Insulation Color
- Black
- Pcb Contact Pattern
- RECTANGULAR
- Insulation Height
- 0.185 4.70mm
- Contact Shape
- Square
- Contact Materials
- Copper
- Withdrawl Forcemin
- .556 N
- Current Rating Amps
- 3.2A per Contact
- Contact Resistance
- 15mOhm
- Uzunluk
- 28.57mm
