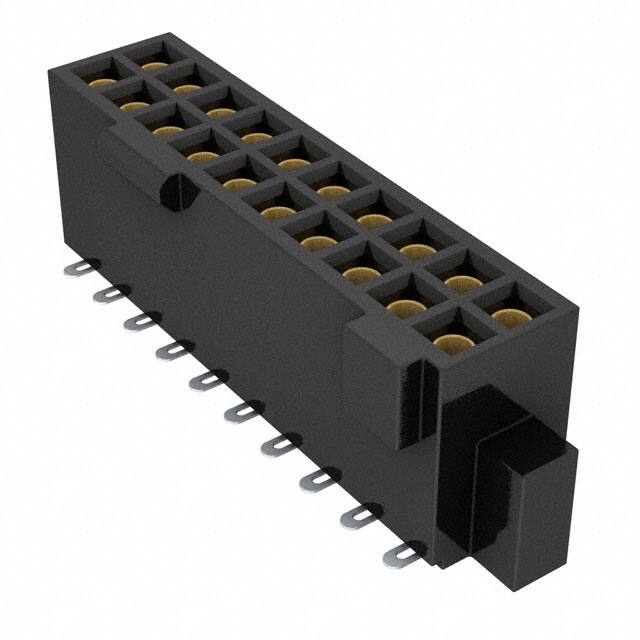

SFML-110-T2-S-D

Specifications

Contact Materials

Bronze

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Insulation Height

0.185 4.70mm

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.417 N

Contact Resistance

15mOhm

Current Rating Amps

3.2A per Contact

Number Of Positions Loaded

All

Number Of Conductors

ONE

Parça Durumu

Active

Insertion Forcemax

.556 N

Option

GENERAL PURPOSE

Mixed Contacts

NO

Fastening Type

Locking Ramp

Seri

Tiger Eye™ SFML

Total Number Of Contacts

20

Contact Type

Female Socket

Voltage Rated Ac

350V

Row Spacing Mating

0.050 (1.27mm)

Terminal

Solder

Body Length Or Diameter

0.515 inch

Filter Feature

NO

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Plating Thickness

30μin

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Mating

30.0μin 0.76μm

Mating Contact Pitch

0.05 inch

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Yayın Yılı

2008

JESD-609 Kodu

e3

Montaj

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)
