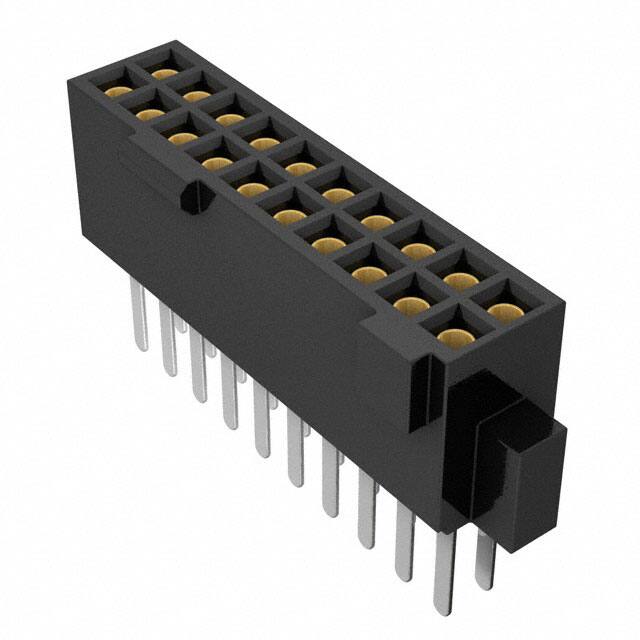

SFML-110-T1-S-D

Specifications

Contact Materials

Bronze

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Insulation Height

0.180 4.57mm

Contact Shape

Square

Pcb Contact Pattern

RECTANGULAR

Max Voltage Rating Ac

250V

Uzunluk

16.64mm

Withdrawl Forcemin

.417 N

Contact Resistance

15mOhm

Current Rating Amps

3.2A per Contact

Contact Length Post

0.120 3.05mm

Number Of Positions Loaded

All

Number Of Conductors

ONE

Depth

3.68mm

Parça Durumu

Active

Insertion Forcemax

.695 N

Option

GENERAL PURPOSE

Mixed Contacts

NO

Fastening Type

Locking Ramp

Seri

Tiger Eye™ SFML

Contact Type

Female Socket

Voltage Rated Ac

350V

Row Spacing Mating

0.050 (1.27mm)

Terminal

Solder

Filter Feature

NO

Montaj Tipi

Through Hole

Connector Type

Receptacle

Plating Thickness

30μin

Contact Finish Thickness Mating

30.0μin 0.76μm

Polarization Key

POLARIZED HOUSING

Mating Contact Pitch

0.05 inch

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Yayın Yılı

2006

JESD-609 Kodu

e3

Montaj

Through Hole
