Volume pricing
- 1+ pcs$1.97
- 10+ pcs$1.86
- 100+ pcs$1.75
- 500+ pcs$1.66
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

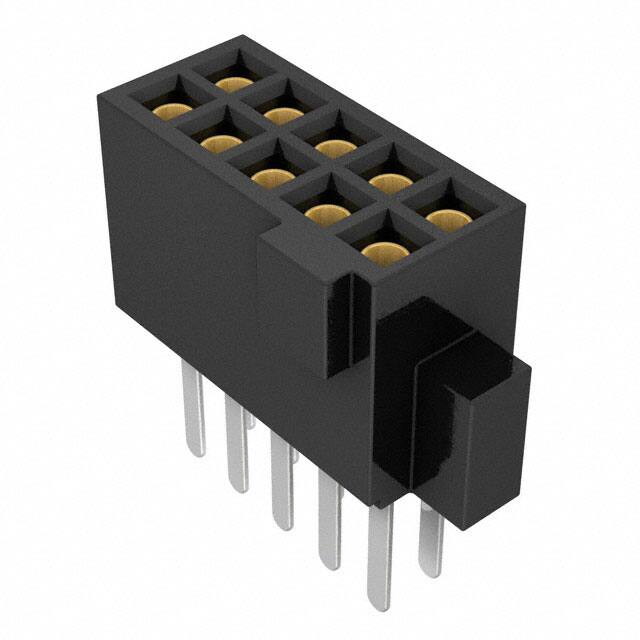

Specifications
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Contact Materials
- PHOSPHOR BRONZE/BERYLLIUM COPPER
- Contact Shape
- Square
- Ambalaj
- Tube
- Insulation Height
- 0.180 4.57mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Color
- Black
- Çalışma Sıcaklığı
- -55°C~125°C
- Pitch Mating
- 0.050 1.27mm
- Gender
- Female
- Radyasyon Dayanımı
- No
- Current Rating Amps
- 3.2A per Contact
- JESD-609 Kodu
- e4
- Material Flammability Rating
- UL94 V-0
- Contact Length Post
- 0.120 3.05mm
- Montaj
- Through Hole
- Fabrika Tedarik Süresi
- 3 Weeks
- Number Of Positions Loaded
- All
- Contact Finish Post
- Tin
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Din Conformance
- NO
- Parça Durumu
- Active
- Fastening Type
- Locking Ramp
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Iec Conformance
- NO
- Mil Conformance
- NO
- Pozisyon Sayısı
- 10
- Contact Finish Mating
- Gold
- Nominal Gerilim
- 250VAC
- Seri
- Tiger Eye™ SFML
- Kurşunsuz Kodu
- yes
- HTS Kodu
- 8536.69.40.40
- Style
- Board to Board or Cable
- Contact Type
- Female Socket
- Row Spacing Mating
- 0.050 (1.27mm)
- Terminal
- Solder
- Sıra Sayısı
- 2
- Filter Feature
- NO
- RoHS Durumu
- ROHS3 Compliant
