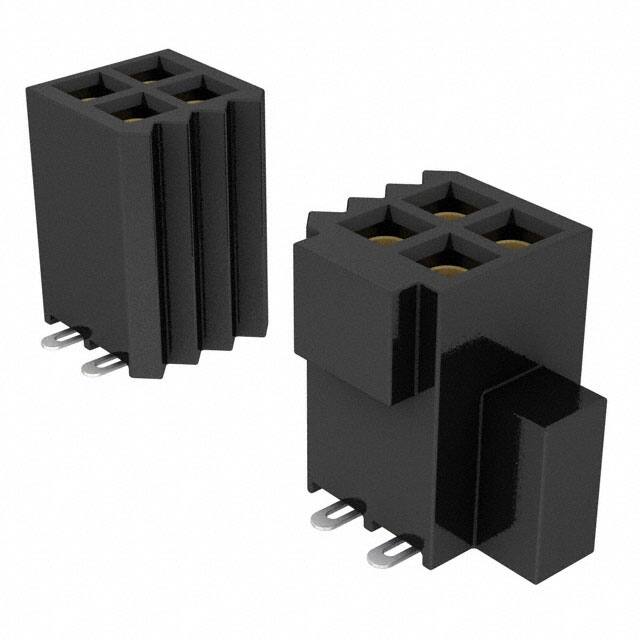

SFM-125-02-S-D

Specifications

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Pitch Mating

0.050 1.27mm

Number Of Conductors

ONE

Reliability

COMMERCIAL

Additional Feature

E.L.P., TIGER EYE CONTACT

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.185 4.70mm

Seri

Tiger Eye™ SFM

Current Rating Amps

3.2A per Contact

Housing Material

Polymer

HTS Kodu

8536.69.40.40

Material Flammability Rating

UL94 V-0

Plating Thickness

30μin

Connector Type

Receptacle

Insertion Forcemax

.695 N

Row Spacing Mating

0.050 (1.27mm)

Option

GENERAL PURPOSE

Fastening Type

Push-Pull

Contact Finish Thickness Mating

30.0μin 0.76μm

Parça Durumu

Active

Sıra Sayısı

2

Contact Materials

Beryllium Copper

Contact Finish Mating

Gold

Max Voltage Rating Ac

250V

Total Number Of Contacts

50

Insulation Materials

Liquid Crystal Polymer (LCP)

Stack Height Mating

6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm

Yayın Yılı

2009

Insulation Color

Black

Iec Conformance

NO

Filter Feature

NO

Mating Contact Pitch

0.05 inch

Contact Type

Female Socket

Reference Standard

UL

Depth

4.19mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Montaj Tipi

Surface Mount
