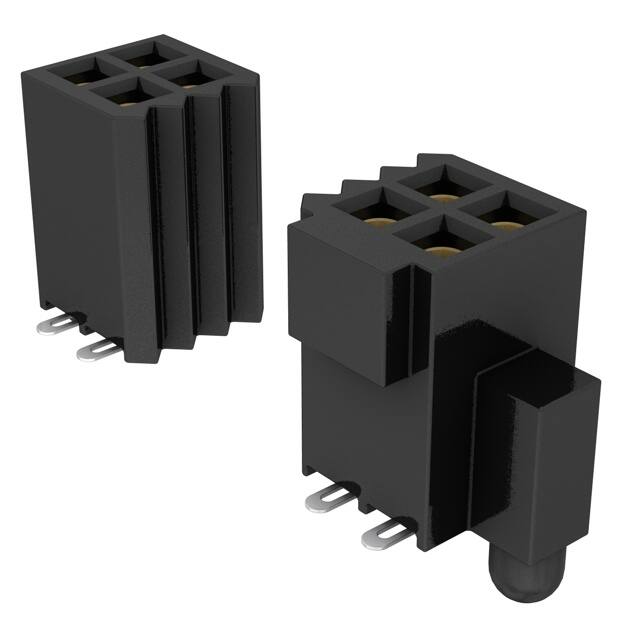

SFM-125-02-L-D-A

Specifications

Contact Shape

Square

Contact Resistance

15mOhm

Uzunluk

34.92mm

Çalışma Sıcaklığı

-55°C~125°C

Orientation

Straight

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

3 Weeks

Number Of Positions Loaded

All

Nominal Gerilim

250VAC

Terminal

Solder

Board Mounting Option

POSITIONING PIN

Ambalaj

Tube

Mixed Contacts

NO

Contact Finish Post

Tin

Depth

3.68mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Type

Female Socket

Pozisyon Sayısı

50

Body Breadth

0.145 inch

Number Of Pcb Rows

2

Style

Board to Board or Cable

Mil Conformance

NO

Montaj Tipi

Surface Mount

Stack Height Mating

6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Total Number Of Contacts

50

Mating Contact Pitch

0.05 inch

Filter Feature

NO

Insulation Color

Black

Iec Conformance

NO

Yayın Yılı

2013

Max Voltage Rating Ac

250V

Contact Finish Mating

Gold

Özellikler

Board Guide

Sıra Sayısı

2

Contact Materials

Beryllium Copper

Insertion Forcemax

.695 N

Connector Type

Receptacle
