Volume pricing
- 1+ pcs$5.88
- 10+ pcs$5.55
- 100+ pcs$5.23
- 500+ pcs$4.94
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

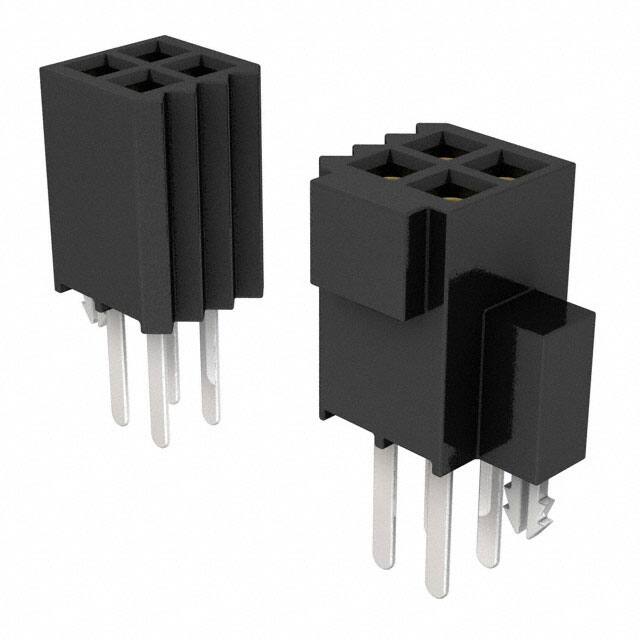

Specifications
- Contact Finish Mating
- Gold
- Özellikler
- Board Lock
- Sıra Sayısı
- 2
- Contact Materials
- Beryllium Copper
- Max Voltage Rating Ac
- 250V
- Option
- GENERAL PURPOSE
- Row Spacing Mating
- 0.050 (1.27mm)
- Parça Durumu
- Active
- Contact Length Post
- 0.120 3.05mm
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Fastening Type
- Push-Pull
- Insertion Forcemax
- .695 N
- Material Flammability Rating
- UL94 V-0
- Plating Thickness
- 30μin
- Connector Type
- Receptacle
- Radyasyon Dayanımı
- No
- Housing Material
- Polymer
- Current Rating Amps
- 3.2A per Contact
- Seri
- Tiger Eye™ SFM
- Insulation Height
- 0.180 4.57mm
- RoHS Durumu
- ROHS3 Compliant
- Reliability
- COMMERCIAL
- Additional Feature
- TIGER EYE CONTACT
- Number Of Conductors
- ONE
- Reach Svhc
- No SVHC
- Pitch Mating
- 0.050 1.27mm
- JESD-609 Kodu
- e3
- Çalışma Sıcaklığı
- -55°C~125°C
- Orientation
- Straight
- Uzunluk
- 29.34mm
- Contact Shape
- Square
- Contact Resistance
- 15mOhm
- Number Of Positions Loaded
- All
- ECCN Kodu
- EAR99
- Nominal Gerilim
- 250VAC
- Ambalaj
- Tube
- Terminal
- Solder
- Mixed Contacts
- NO
- Din Conformance
- NO
- Fabrika Tedarik Süresi
- 3 Weeks
