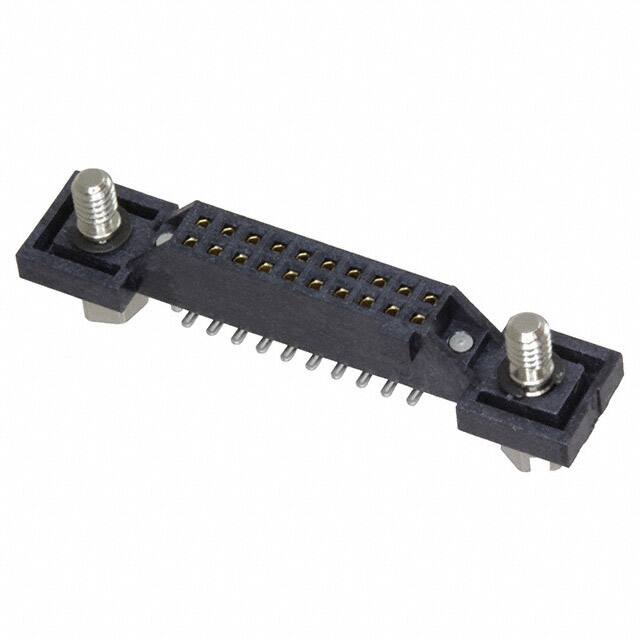

SFM-110-02-L-D-DS

Specifications

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Mil Conformance

NO

Pozisyon Sayısı

20

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Current Rating Amps

3.2A per Contact

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Insulation Height

0.185 4.70mm

Seri

Tiger Eye™ SFM

Additional Feature

POLARIZED

Insulation Color

Black

Iec Conformance

NO

Filter Feature

NO

Total Number Of Contacts

20

Stack Height Mating

6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Pitch Mating

0.050 1.27mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Materials

Beryllium Copper

Özellikler

Mounting Flange, Mounting Hardware

Contact Shape

Square

Option

GENERAL PURPOSE

Row Spacing Mating

0.050 (1.27mm)

Nominal Gerilim

250VAC

Number Of Positions Loaded

All

Parça Durumu

Active

Mixed Contacts

NO

Fastening Type

Push-Pull

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Ambalaj

Tube

Din Conformance

NO

Fabrika Tedarik Süresi

5 Weeks

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle
