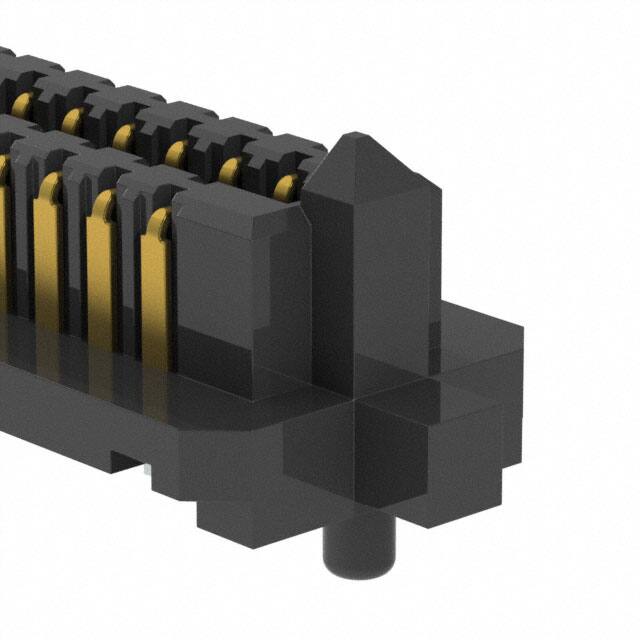

SEAM-30-03.0-S-04-2-A-K-TR

Specifications

Contact Style

CENTRONIC

Pcb Contact Row Spacing

1.27 mm

Filter Feature

NO

Operating Temperature Max

125°C

Total Number Of Contacts

120

Özellikler

Board Guide, Pick and Place

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e3

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Operating Temperature Min

-55°C

Iec Conformance

NO

Number Of Conductors

ONE

Contact Pattern

RECTANGULAR

Plating Thickness

30μin

Radyasyon Dayanımı

No

Sıra Sayısı

4

Din Conformance

NO

Insulator Color

BLACK

Kurşunsuz Kodu

yes

Connector Type

High Density Array, Male

Option

GENERAL PURPOSE

Pitch

0.050 1.27mm

Body Breadth

0.278 inch

Additional Feature

ELP; FINAL INCH; SAMARRAY; SEARRAY

Body Length Or Diameter

1.696 inch

Number Of Pcb Rows

4

Seri

SEARAY™ SEAM

Mil Conformance

NO

Stack Height Mating

8mm 9mm 9.5mm 10.5mm 11mm

Board Mounting Option

PEG

Gender

Male

Rated Current Signal

2.7A

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Body Depth

0.26 inch

Fabrika Tedarik Süresi

3 Weeks

Mixed Contacts

NO

Pozisyon Sayısı

120

Ambalaj

Tape & Reel (TR)
