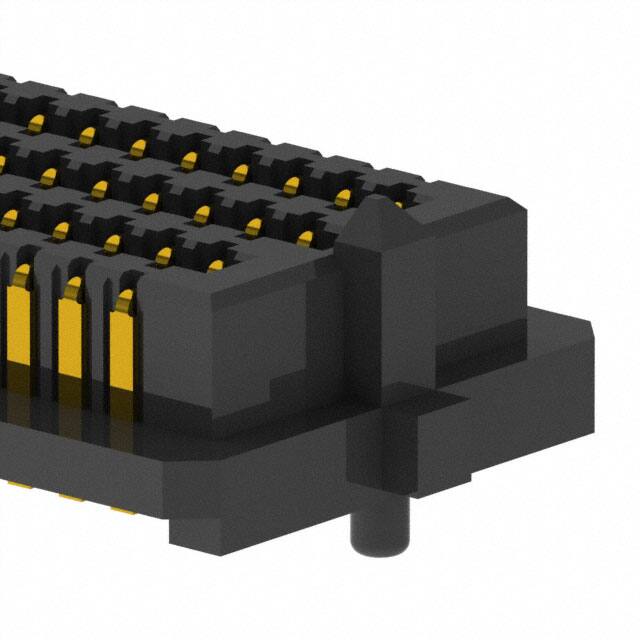

SEAM-20-11.0-S-08-2-A-K-TR

Specifications

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

160

Durability

2000 Cycles

Bodyshell Style

RECEPTACLE

Body Depth

0.575 inch

Fabrika Tedarik Süresi

6 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Board Mounting Option

POSITIONING PIN

Mil Conformance

NO

Contact Finish

Gold

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Gender

Male

Rated Current Signal

2.7A

Connector Type

High Density Array, Male

Option

GENERAL PURPOSE

Insulation Resistance

2500000000Ohm

Radyasyon Dayanımı

No

Plating Thickness

30μin

Insulator Color

BLACK

Din Conformance

NO

Kurşunsuz Kodu

yes

Pitch

0.050 1.27mm

Body Length Or Diameter

1.196 inch

Özellikler

Board Guide, Pick and Place

Operating Temperature Min

-55°C

Reliability

COMMERCIAL

Mounting Option1

LOCKING

Montaj Tipi

Surface Mount

Reference Standard

UL

Height Above Board

0.575 14.61mm

Contact Finish Thickness

30.0μin 0.76μm

Terminal

Solder

Contact Materials

COPPER ALLOY

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Stack Height Mating

16mm 17mm 17.5mm 18.5mm 19mm

Contact Resistance

5.5mOhm

RoHS Durumu

ROHS3 Compliant
