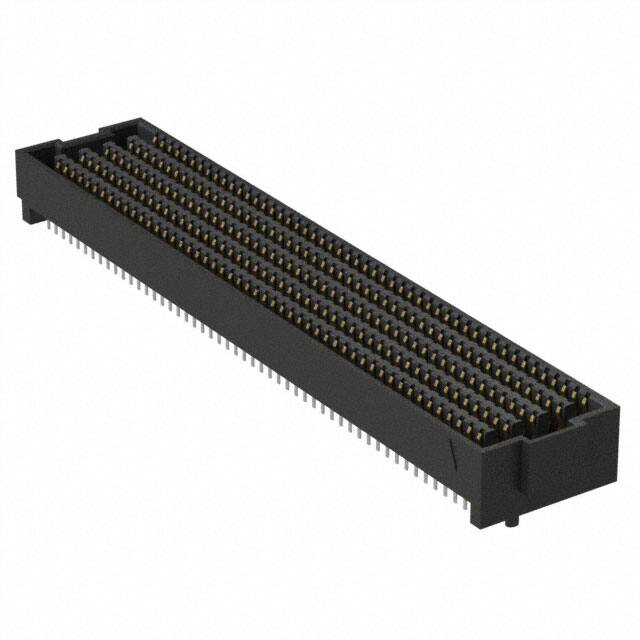

SEAF-50-05.0-S-10-2-A-K-TR

Specifications

Nominal Gerilim

240V

Gender

Receptacle

Option

GENERAL PURPOSE

Withdrawl Forcemin

LIF N

Contact Pattern

RECTANGULAR

Akım Değeri

2.3A

Body Length Or Diameter

2.729 inch

Additional Feature

ROHS COMPLIANT

Total Number Of Contacts

500

Height Above Board

0.199 5.05mm

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness

30.0μin 0.76μm

Rated Current Signal

2.7A

Operating Temperature Max

125°C

Kurşunsuz Kodu

yes

Iec Conformance

NO

Stack Height Mating

7mm 8mm 8.5mm 11.5mm 12mm 14mm 16mm 18mm

Reliability

COMMERCIAL

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

7mOhm

Mil Conformance

NO

Fabrika Tedarik Süresi

3 Weeks

Body Breadth

0.521 inch

Operating Temperature Min

-55°C

Polarization Key

POLARIZED HOUSING

Contact Materials

Copper

JESD-609 Kodu

e3

Insulator Color

BLACK

Mixed Contacts

NO

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Insertion Forcemax

LIF N

Dielectric Withstanding Voltage

900VAC V

Filter Feature

NO

Reach Svhc

No SVHC

Number Of Conductors

ONE

Orientation

Straight

Özellikler

Board Guide, Pick and Place
